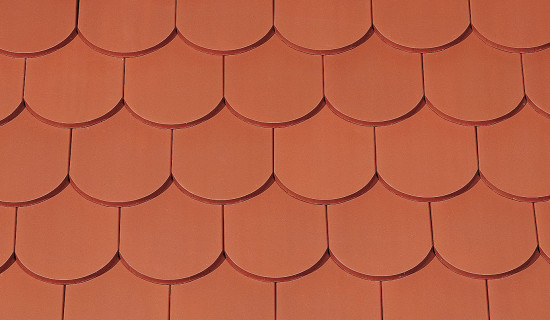

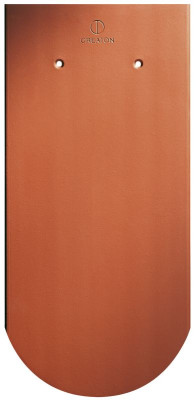

KLASSIK Okrogla oblika (ROG)

  • Največji obseg uporabe omogoča individualne rešitve strešnih kritin
  • Idealno za prenove in novogradnje
  • Elegantna, nevsiljiva in brezčasna oblika strešnih površin klasične lepote
  • Vizualno oživi strešne krajine
  • Širok spekter barv in površin
naravno rdeča
naravno rdeča
NUANCE naravno rdeča ožgana
NUANCE naravno rdeča ožgana
NUANCE rdeča engobirana
NUANCE rdeča engobirana
NUANCE bakreno rdeča engobirana
NUANCE bakreno rdeča engobirana
NUANCE vinsko rdeča engobirana
NUANCE vinsko rdeča engobirana
NUANCE rjava engobirana
NUANCE rjava engobirana
NUANCE temno rjava engobirana
NUANCE temno rjava engobirana
NUANCE skrilnato siva engobirana
NUANCE skrilnato siva engobirana
NUANCE antracitna engobirana
NUANCE antracitna engobirana
NUANCE temno rjava engobirana
NUANCE temno rjava engobirana
NUANCE siva engobirana
NUANCE siva engobirana
FINESSE rdeča glazirana
FINESSE rdeča glazirana
FINESSE vinsko rdeča glazirana
FINESSE vinsko rdeča glazirana
FINESSE rjava glazirana
FINESSE rjava glazirana
FINESSE zelena glazirana
FINESSE zelena glazirana
FINESSE črna glazirana
FINESSE črna glazirana

Technical data

Velikost (približno)180 x 380 x 14 mm
Maksimalno prekrivanje (približno)180 mm
Približna prekrivna dolžina155 mm
Maks. poraba (približno)165 mm
Min. poraba (približno)145 mm
Povprečna zahteva za strešnike (približno)36 kos/m²
Potrebni strešniki, najm. (pribl.)33.6 kos/m²
Teža po m ² (približno)64.8 kg/m²
Teža po paleti (približno)927 kg
Teža enote (približno)1.8 kg/piece
Kos na paleto480 kos
Kos po mini paketu8 piece

Area of use

VALID FOR GERMANY
Naklon strehe DUO extra (Nemčija)≥ 22 °
Naklon strehe QUATTRO longlife extra (Nemčija)≥ 10 °
Naklon strehe TRIO extra (Nemčija)≥ 18 °
Naklon strehe DUO longlife ND extra (Nemčija)≥ 18 °
VALID FOR AUSTRIA
Naklon strehe DUO longlife ND extra (Avstrija)≥ 25 °
Naklon strehe DUO extra (Avstrija)≥ 25 °
Naklon strehe QUATTRO longlife extra (Avstrija)≥ 25 °
Naklon strehe TRIO extra (Avstrija)≥ 25 °

Technical informations

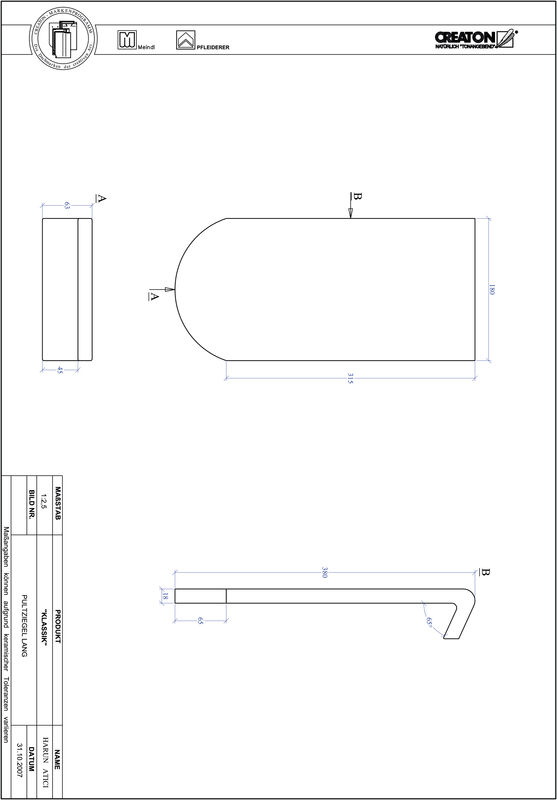

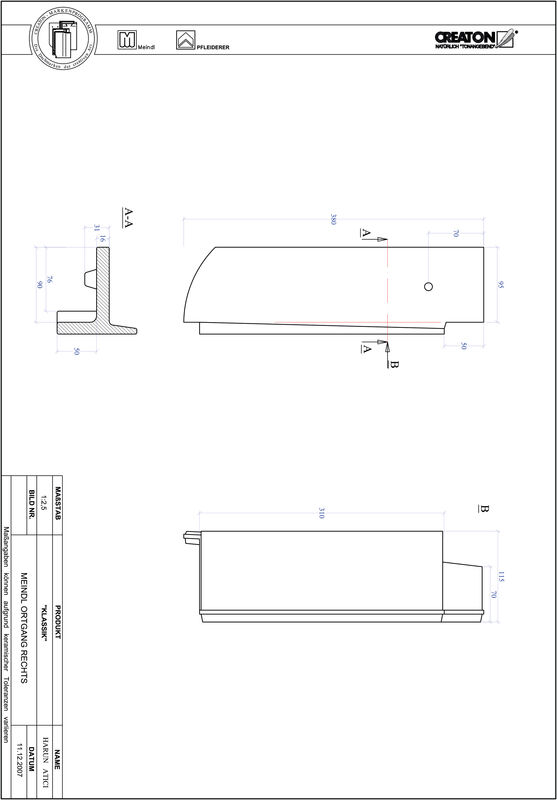

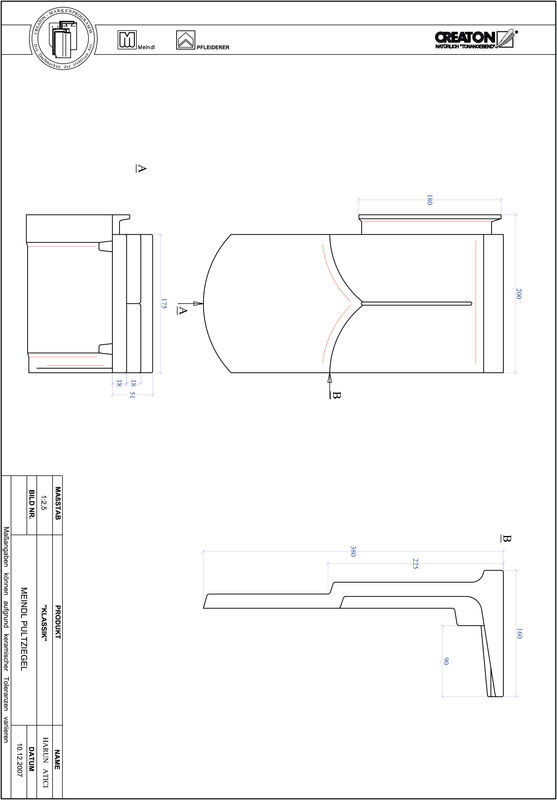

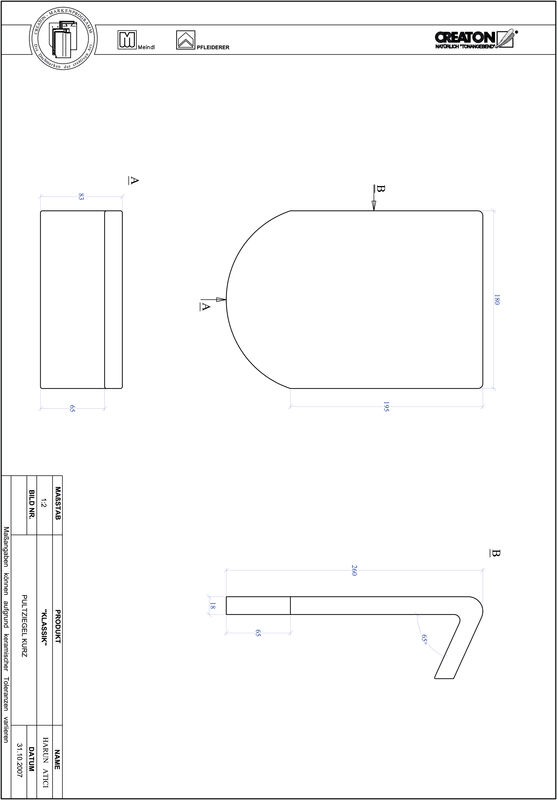

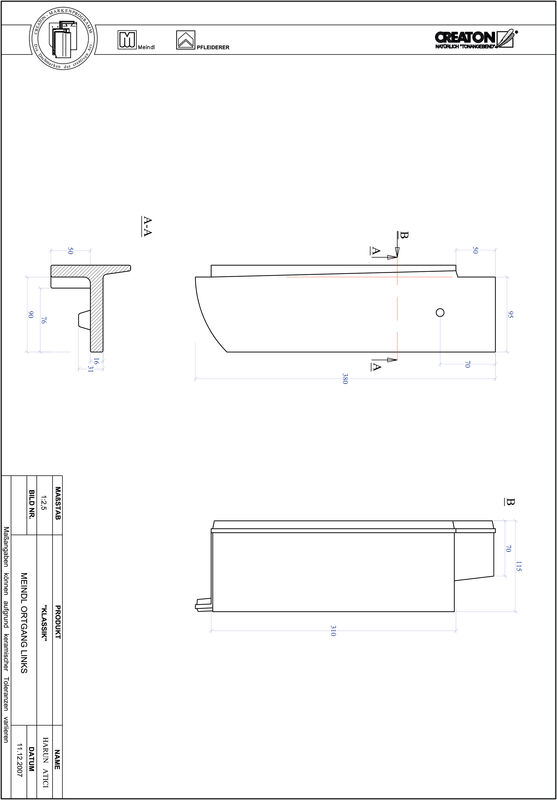

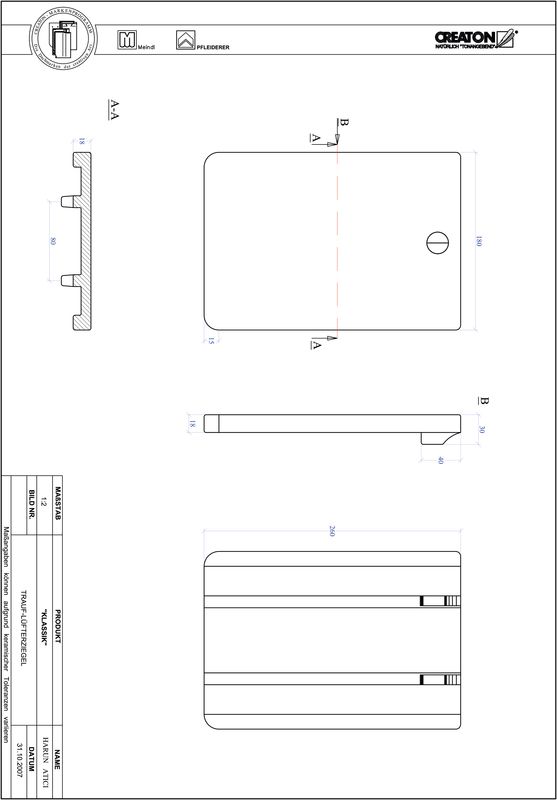

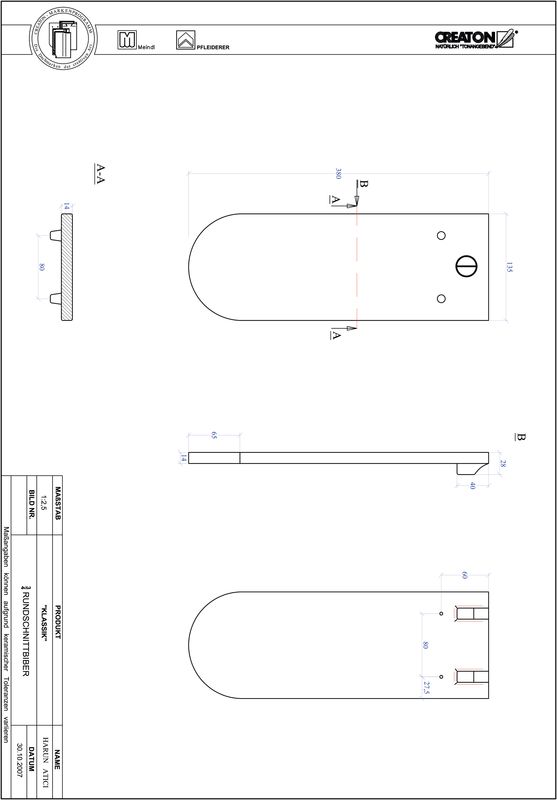

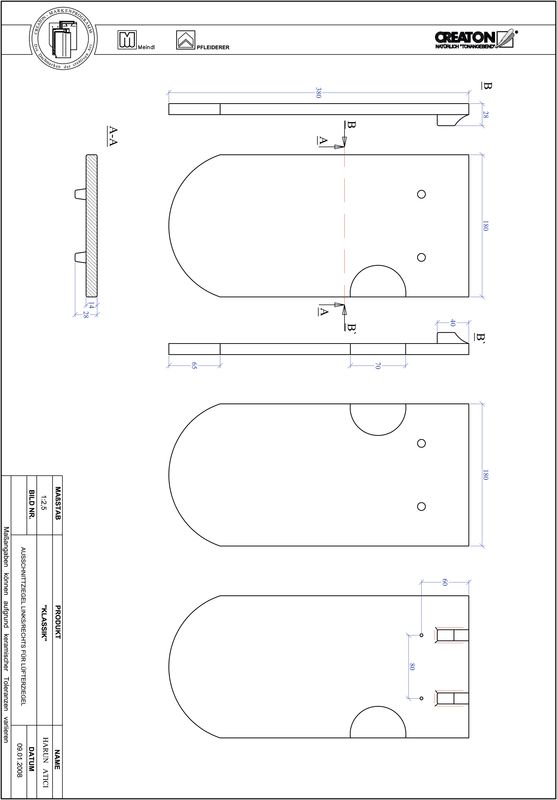

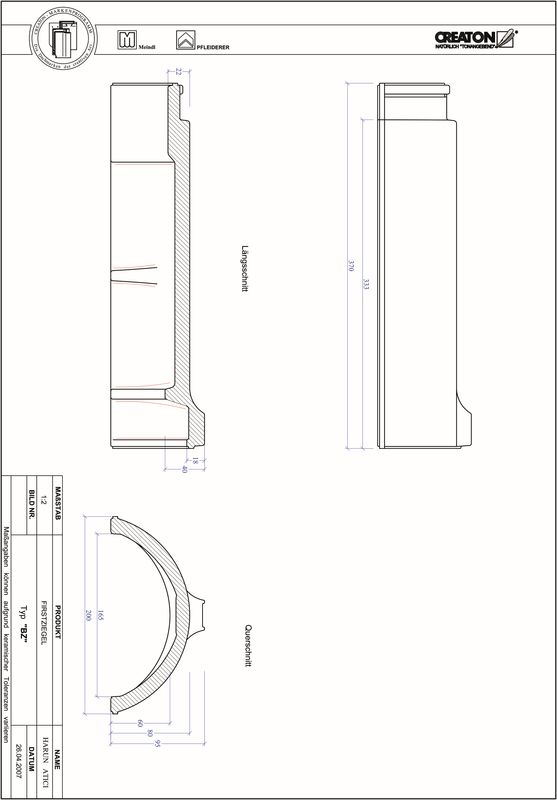

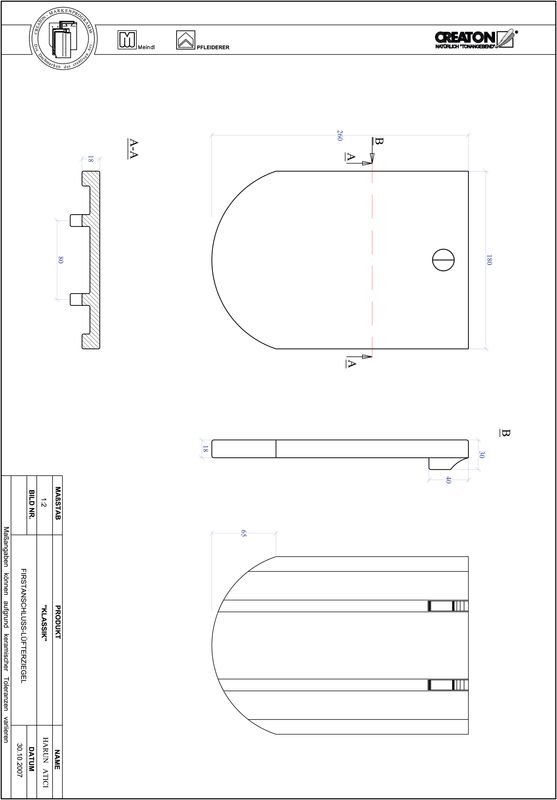

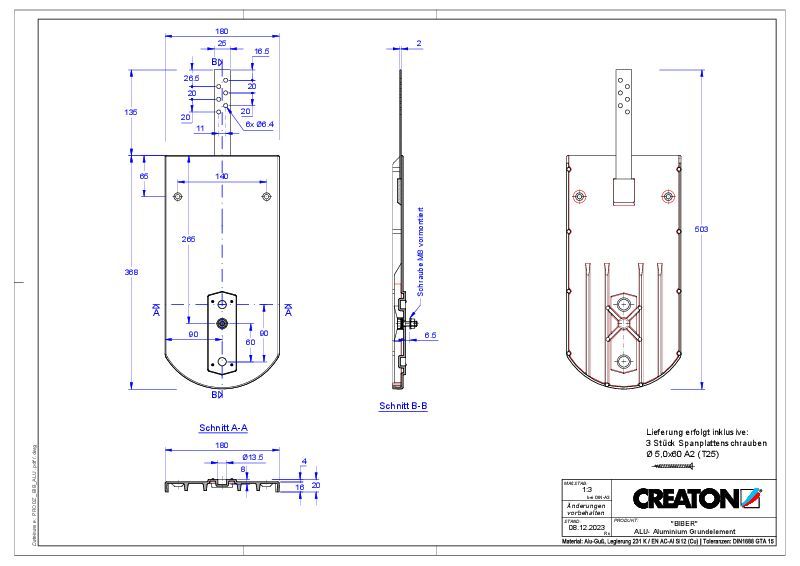

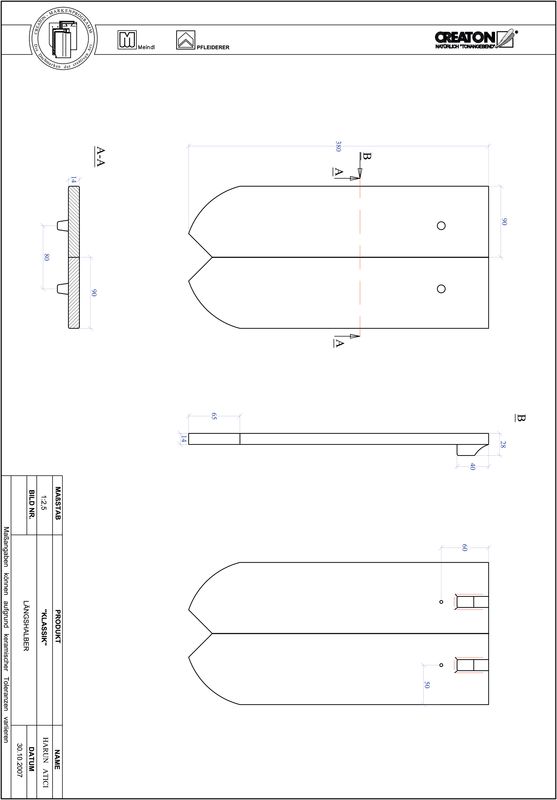

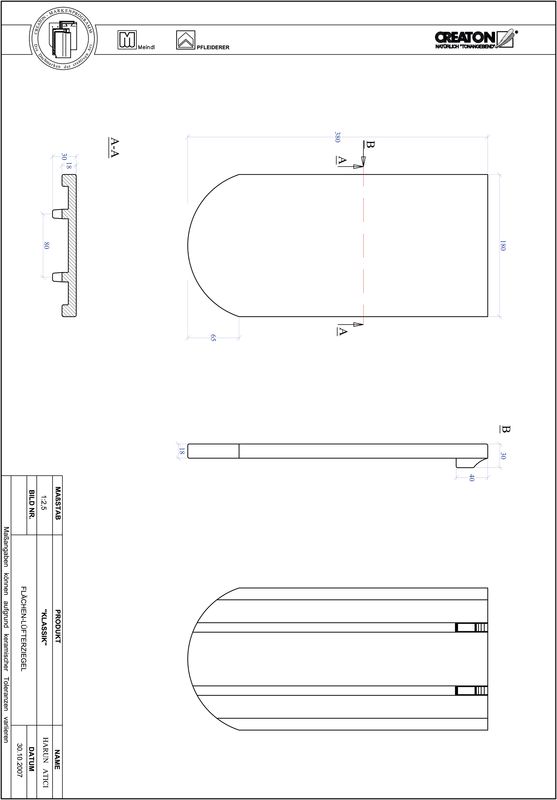

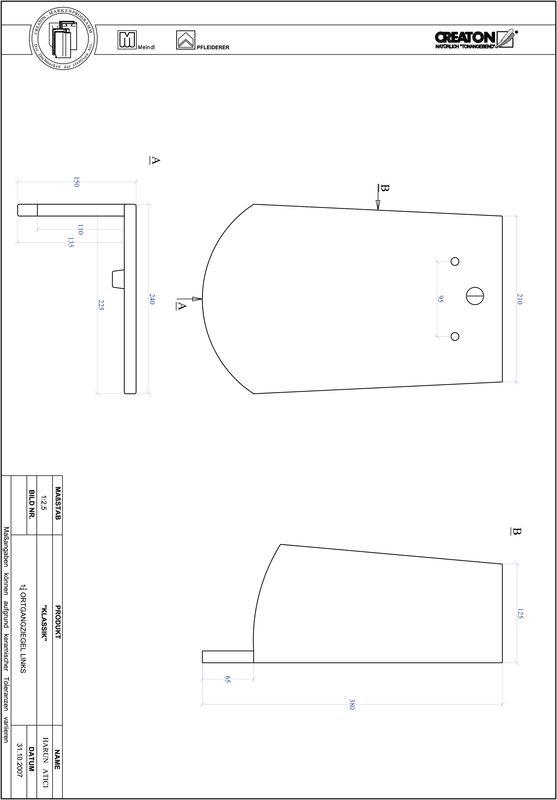

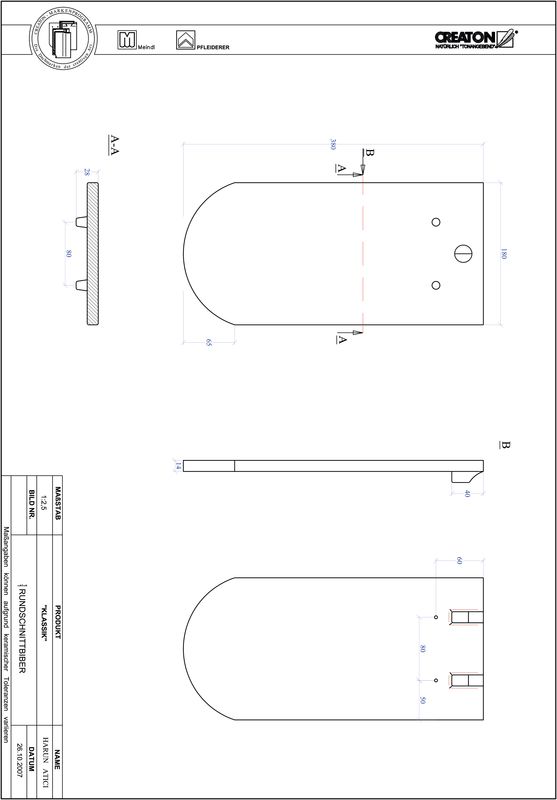

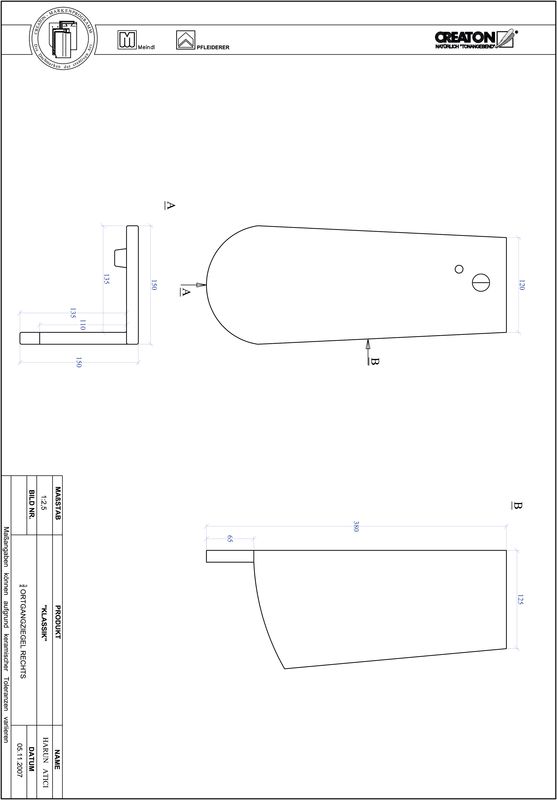

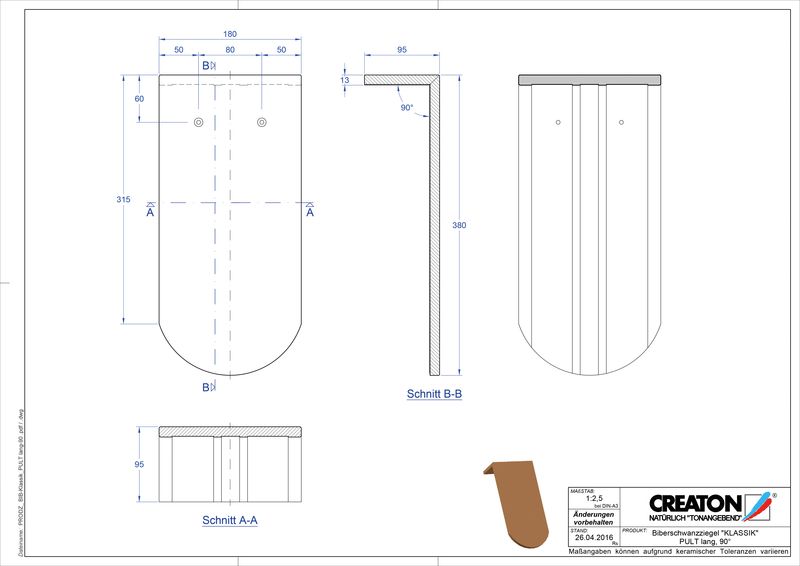

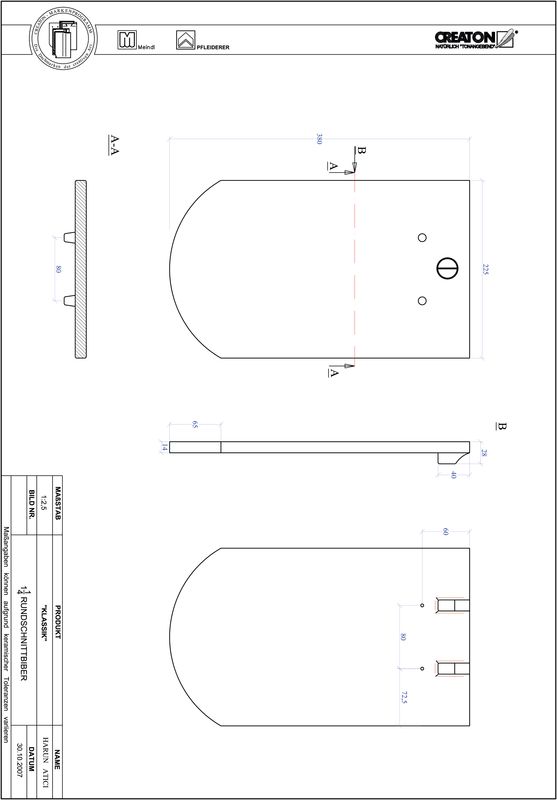

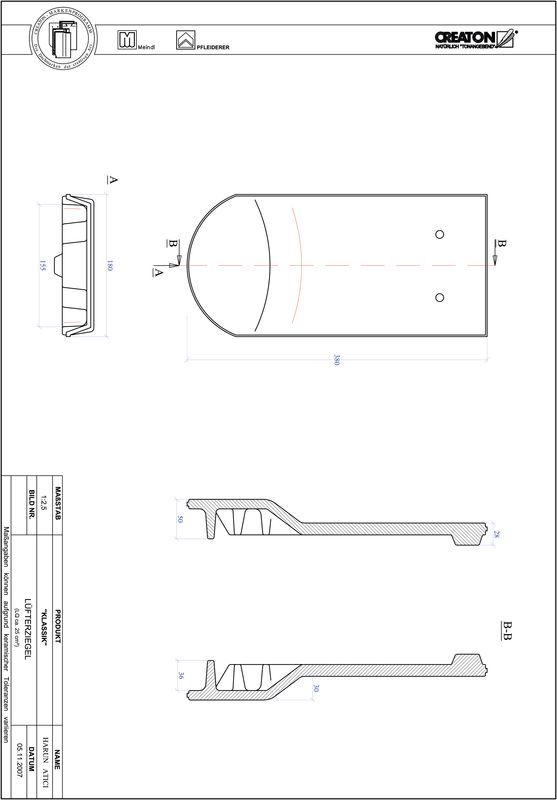

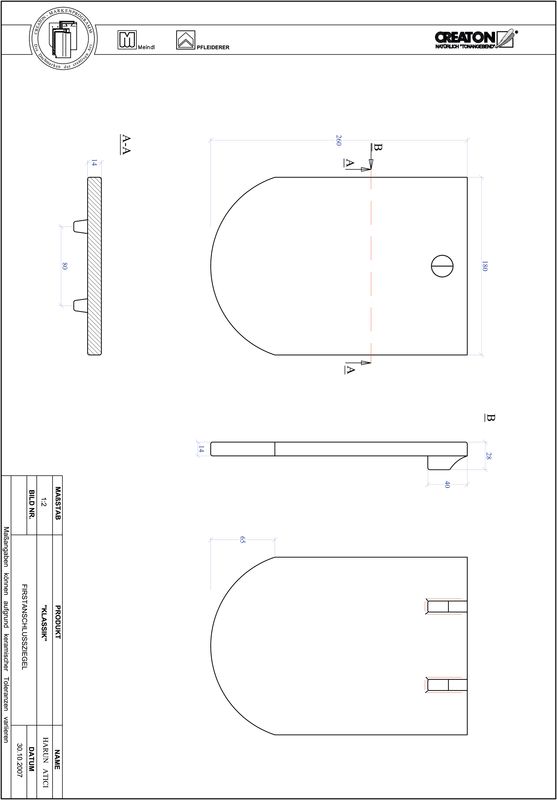

  • The technical drawing shown is merely an example.

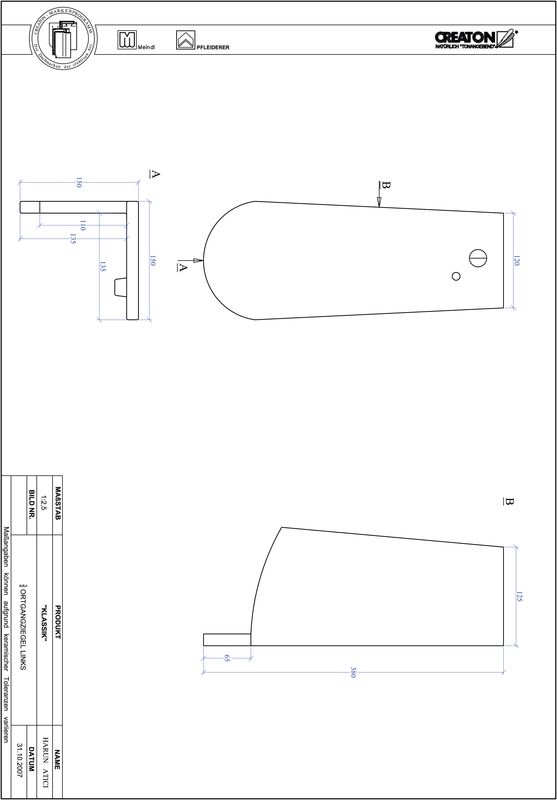

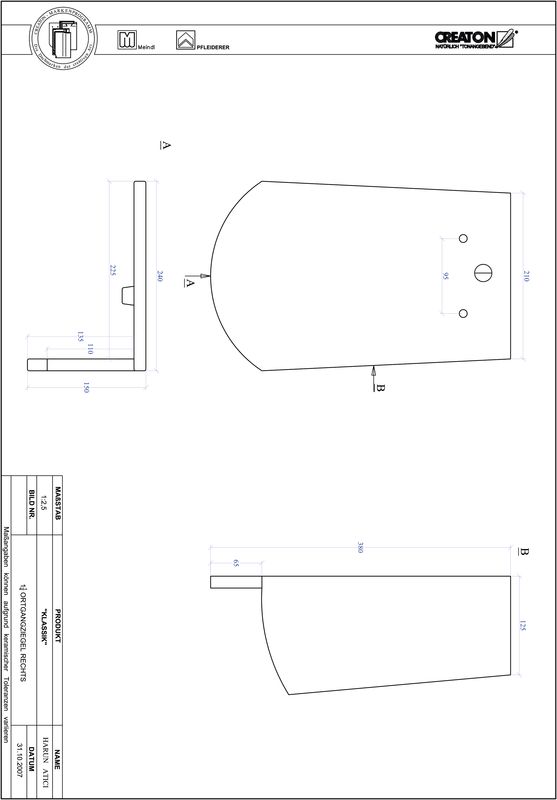

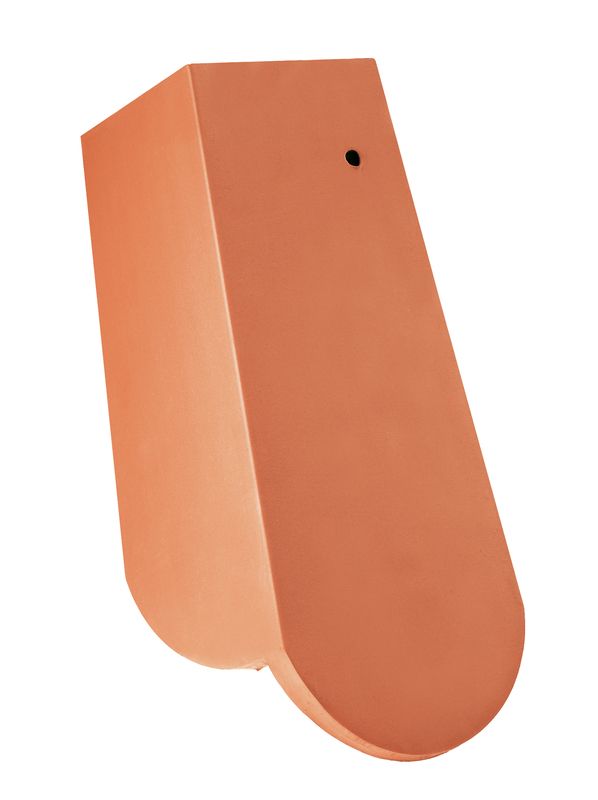

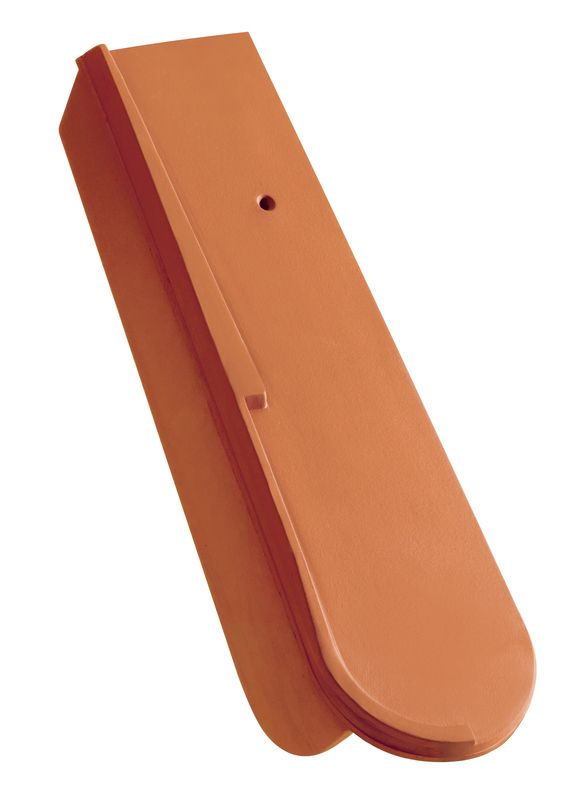

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

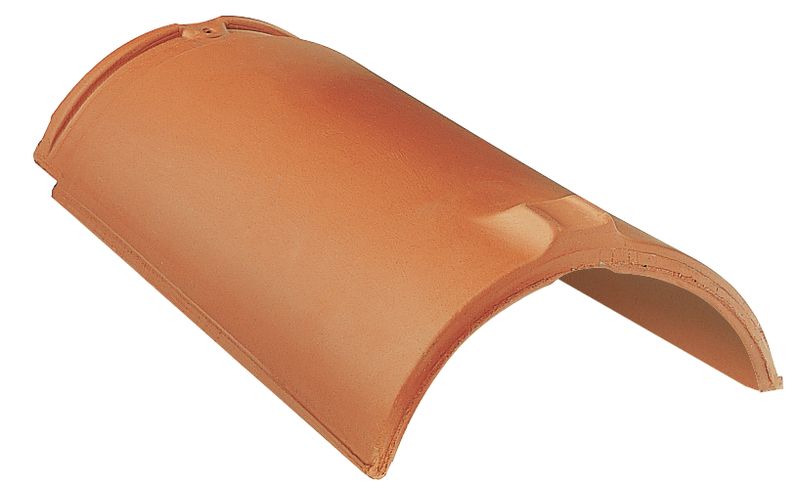

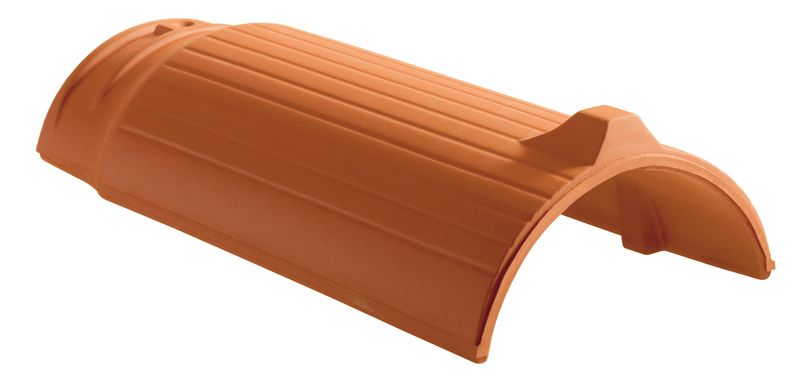

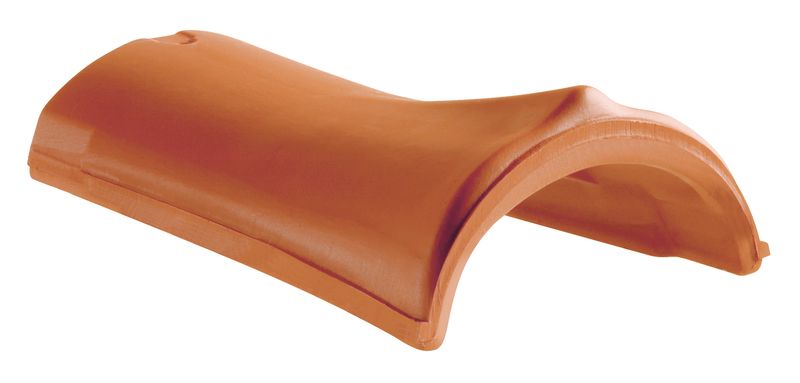

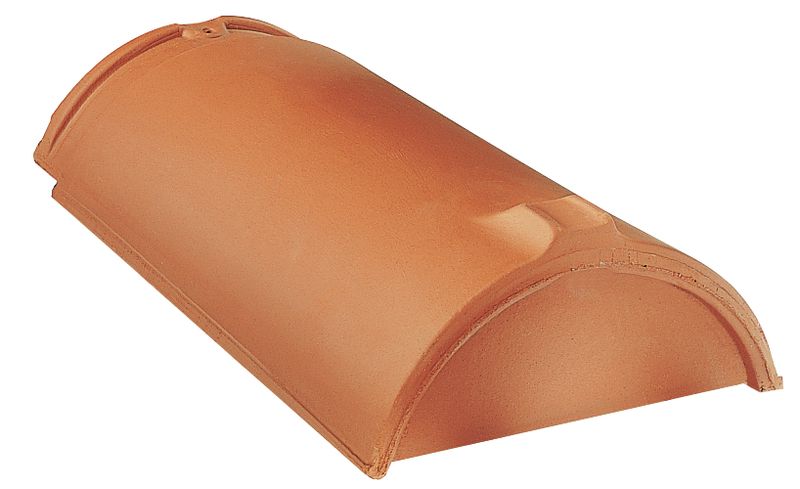

Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF908580808075758085
BMK 2.5 pcs./m.LAF60605555505045

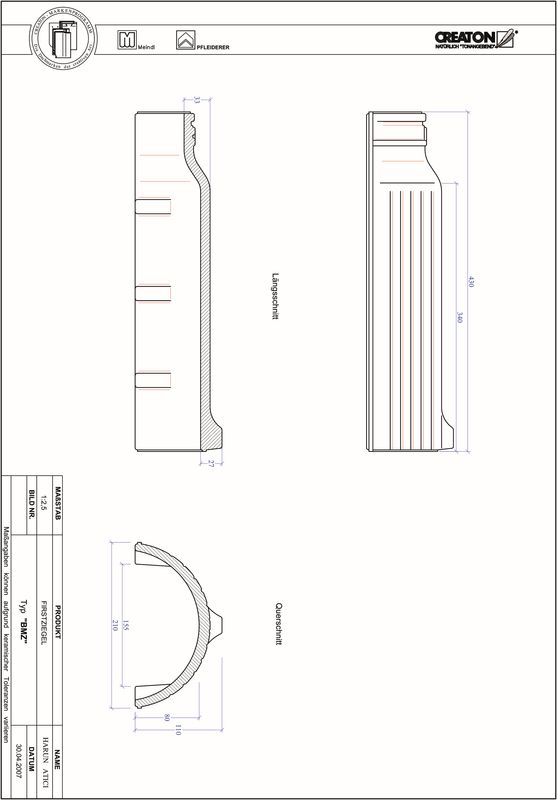

BMZ 2.5 pcs./m.LAF908580757575758080

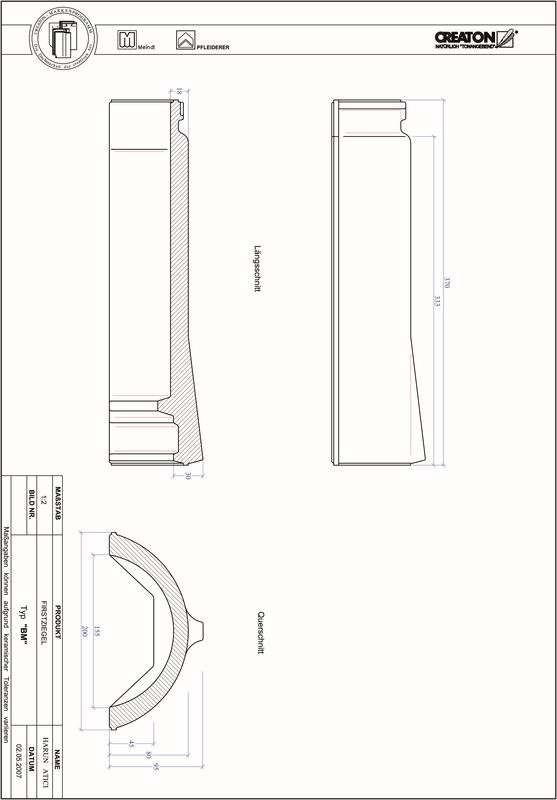

BM 2.5 pcs./m.LAF908580808075758585
BZ 2.5 pcs./m.LAF9085807575757580
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF858075757565606570
BMK 2.5 pcs./m.LAF5555504535
BMZ 2.5 pcs./m.LAF858075707065606565
BM 2.5 pcs./m.LAF858075757565607070
BZ 2.5 pcs./m.LAF8580757070656065
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN20°25°30°35°40°45°50°55°60°
BG 2.5 pcs./m.LAF807570656555505555
BMK 2.5 pcs./m.LAF5045403525
BMZ 2.5 pcs./m.LAF807570606055505550
BM 2.5 pcs./m.LAF807570656555506060
BZ 2.5 pcs./m.LAF8075706060555055

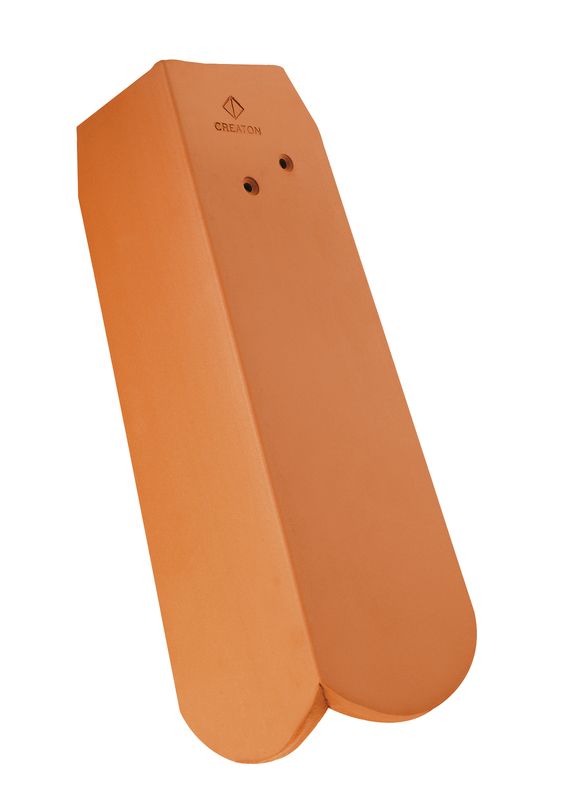

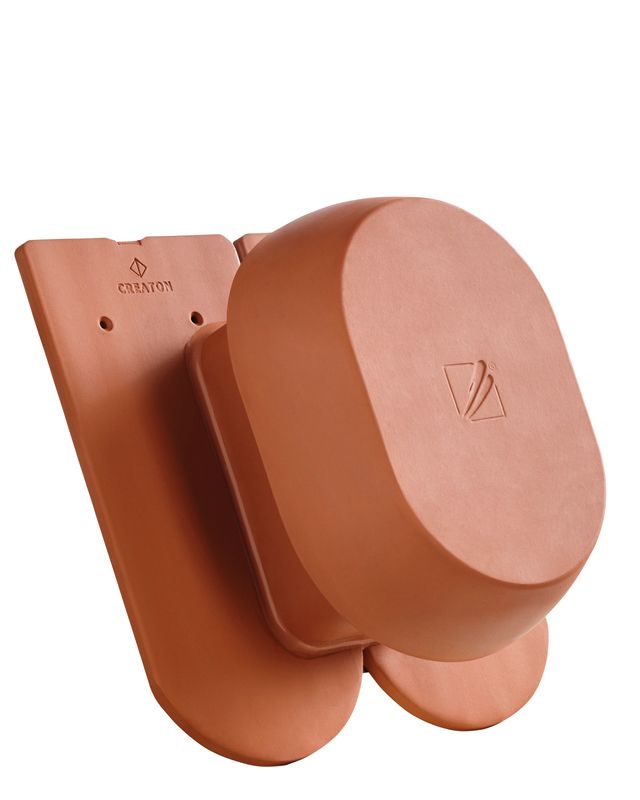

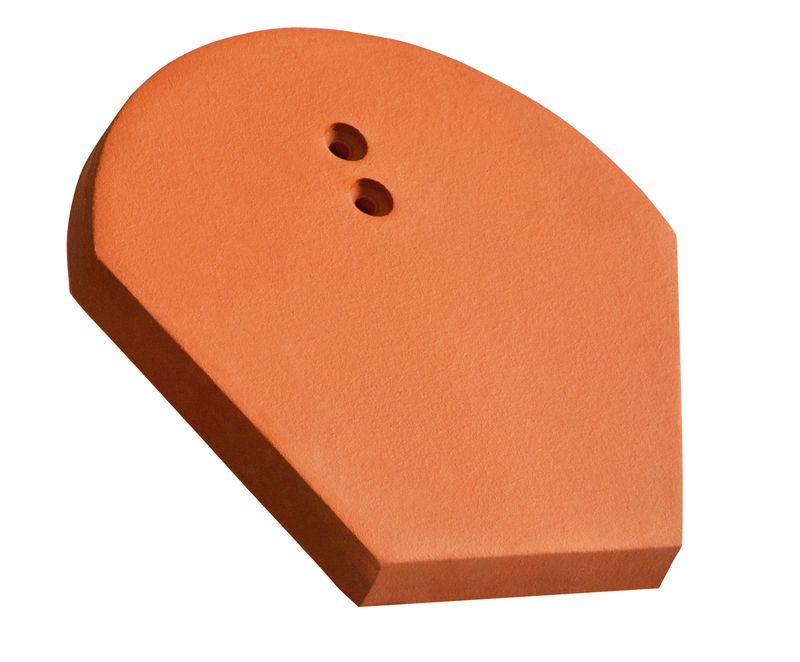

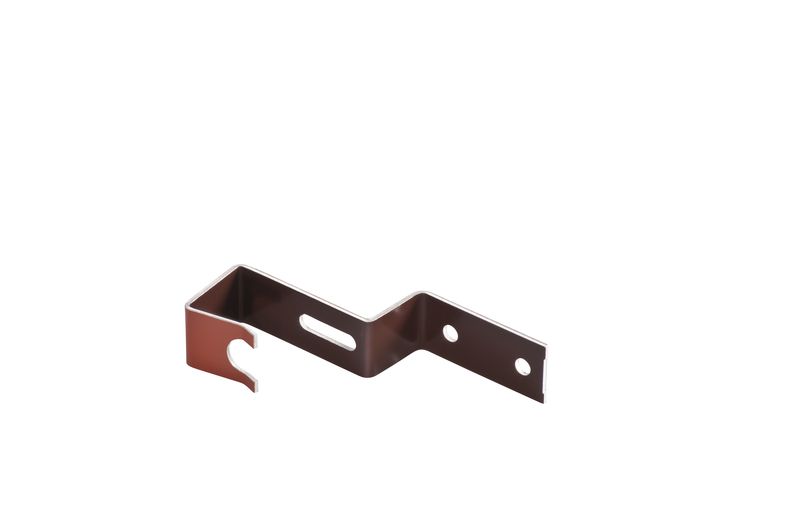

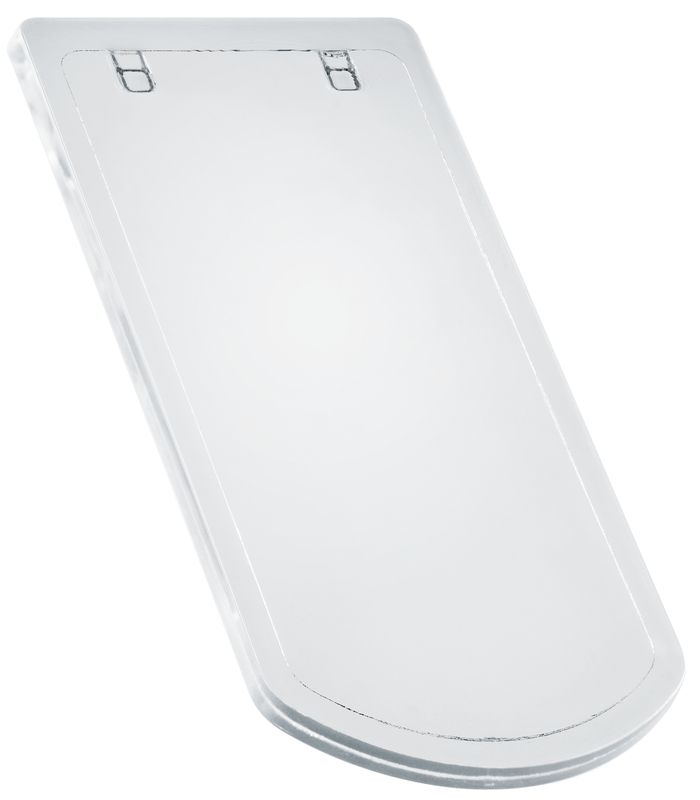

Accessories
