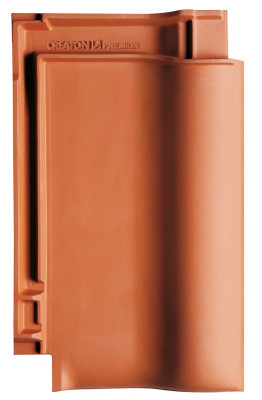

PREMION

Ravne strešne kritine, opečni faktor

  • Posebej kakovostna in odporna zaradi proizvodnje KERALIS
  • Posebej veliko območje zamika v velikosti 23 mm na strešnik
  • Prvovrstne surovine omogočajo 12 barv v štirih površinskih različicah
  • Vertikalno zgibanje z "labrintno tehniko" preprečuje vdor vode tudi pri močnem vetru
  • Primerno tudi za zelo ravne strehe z naklonom do 7 °, z vodoodporno sekundarno kritino

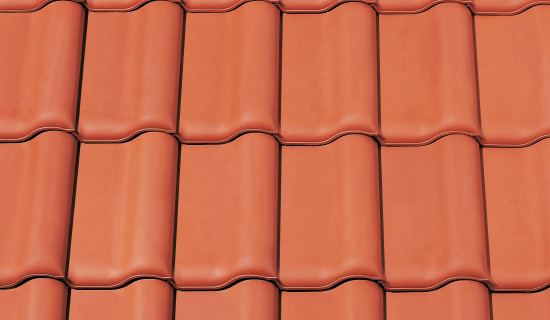

naravno rdeča
naravno rdeča
NUANCE bakreno rdeča engobirana
NUANCE bakreno rdeča engobirana
NUANCE rjava engobirana
NUANCE rjava engobirana
NUANCE mangan engobirana
NUANCE mangan engobirana
NUANCE skrilnato siva engobirana
NUANCE skrilnato siva engobirana
NUANCE črna mat engobirana
NUANCE črna mat engobirana
FINESSE vinsko rdeča glazirana
FINESSE vinsko rdeča glazirana
FINESSE rjava glazirana
FINESSE rjava glazirana
FINESSE črna glazirana
FINESSE črna glazirana
NOBLESSE kristalno skrilnato siva glazirana
NOBLESSE kristalno skrilnato siva glazirana
NOBLESSE kristalno črna glazirana
NOBLESSE kristalno črna glazirana

Technical data

Velikost (približno)280 x 460 mm
Približna prekrivna širina225 mm
Maksimalno prekrivanje (približno)228 mm
Minimalna približna prekrivna širina222 mm
Približna prekrivna dolžina368 mm
Maks. poraba (približno)379 mm
Min. poraba (približno)357 mm
Povprečna zahteva za strešnike (približno)12.1 kos/m²
Zidarstvo maks. približno12.6 kos/m²
Potrebni strešniki, najm. (pribl.)11.6 kos/m²
Teža po m ² (približno)42.4 kg/m²
Teža po paleti (približno)865 kg
Teža enote (približno)3.5 kg/piece
Kos na paleto240 kos
Kos po mini paketu5 piece

Area of use

VALID FOR GERMANY
Naklon strehe DUO extra (Nemčija)≥ 12 °
Naklon strehe QUATTRO longlife extra (Nemčija)≥ 7 °
Naklon strehe TRIO extra (Nemčija)≥ 10 °
Naklon strehe DUO longlife ND extra (Nemčija)≥ 10 °
VALID FOR AUSTRIA
Naklon strehe DUO longlife ND extra (Avstrija)≥ 17 °
Naklon strehe DUO extra (Avstrija)≥ 17 °
Naklon strehe QUATTRO longlife extra (Avstrija)≥ 15 °
Naklon strehe TRIO extra (Avstrija)≥ 17 °

Technical informations

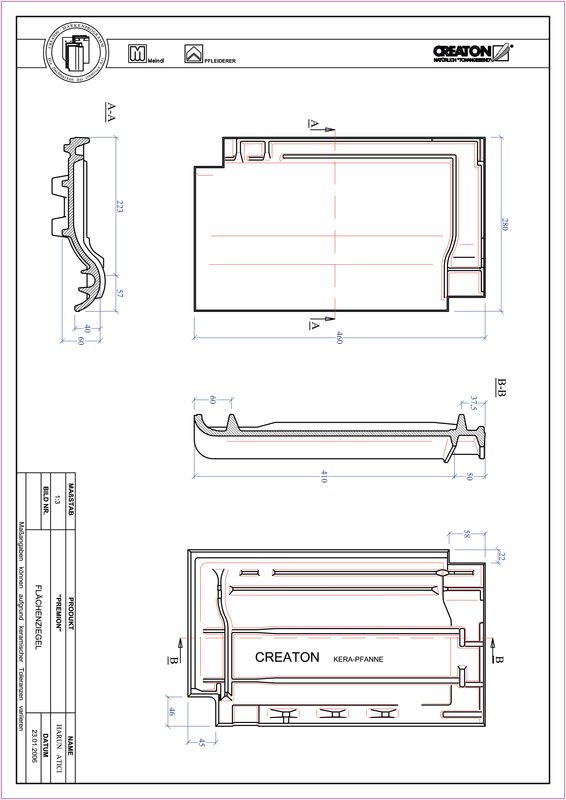

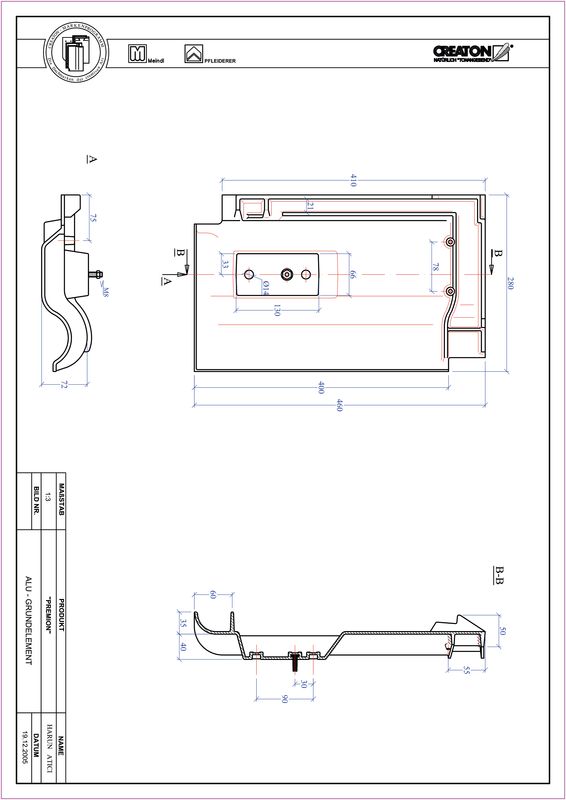

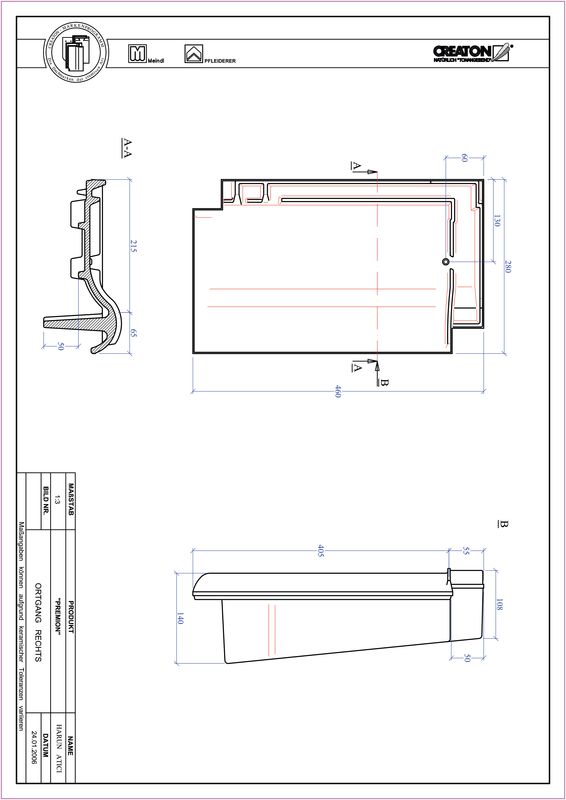

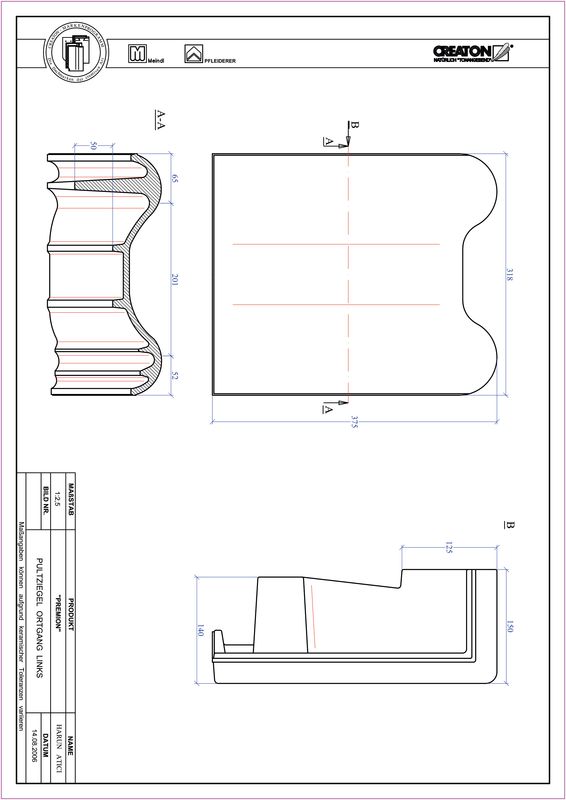

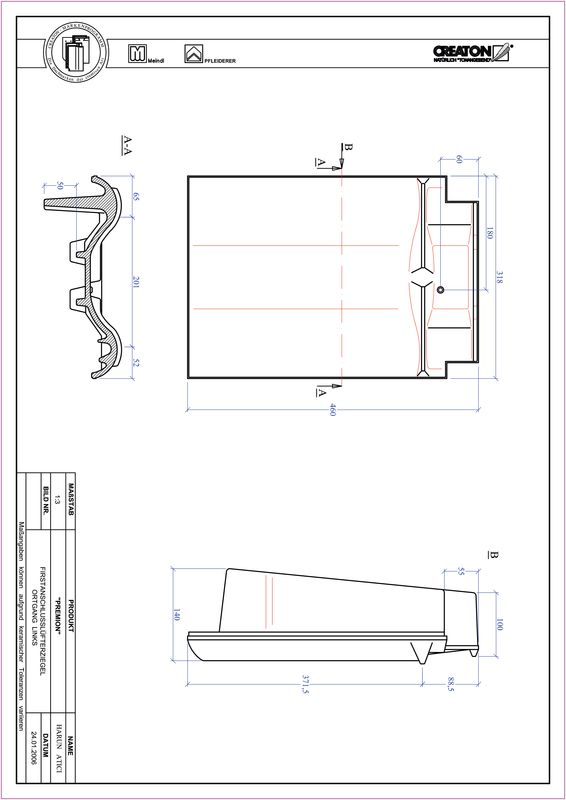

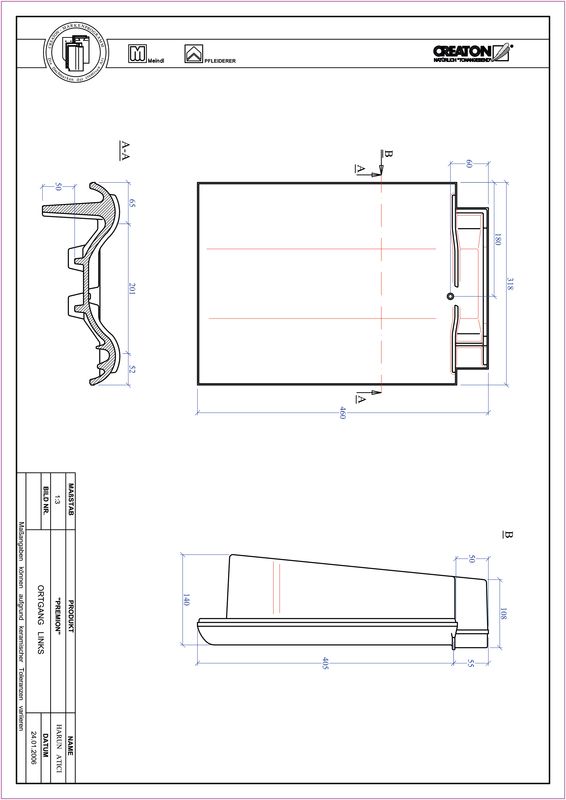

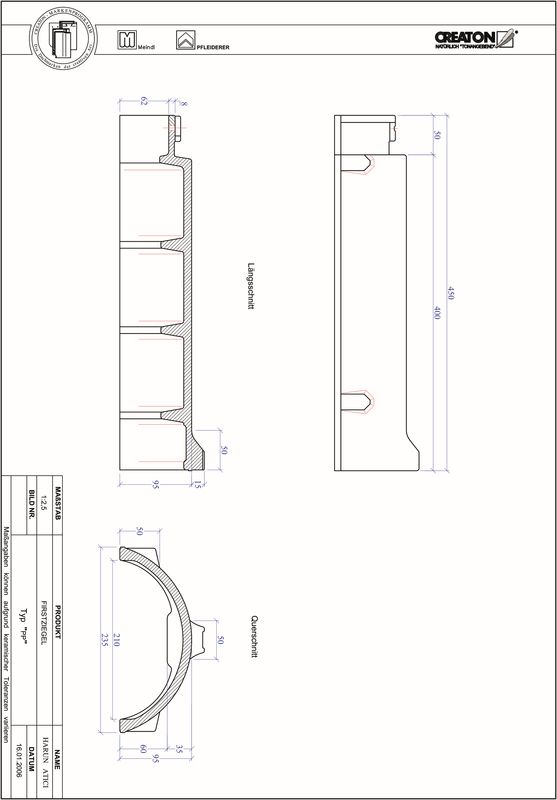

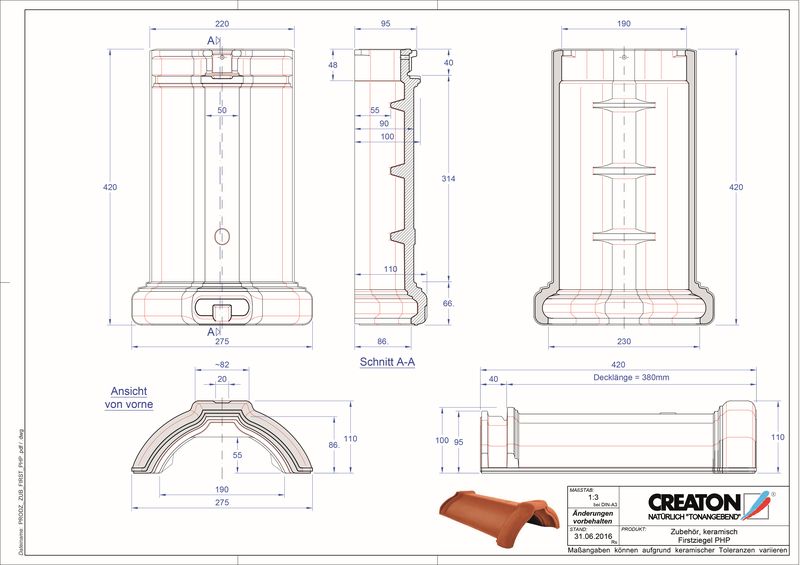

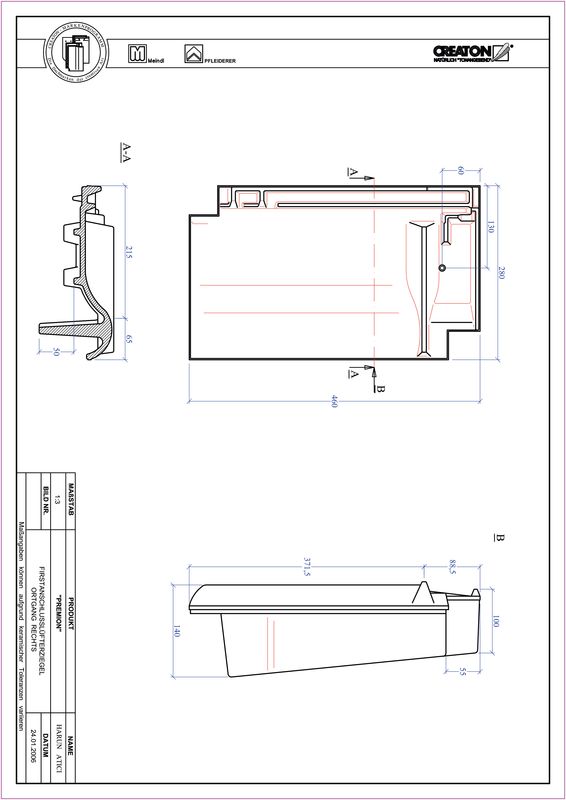

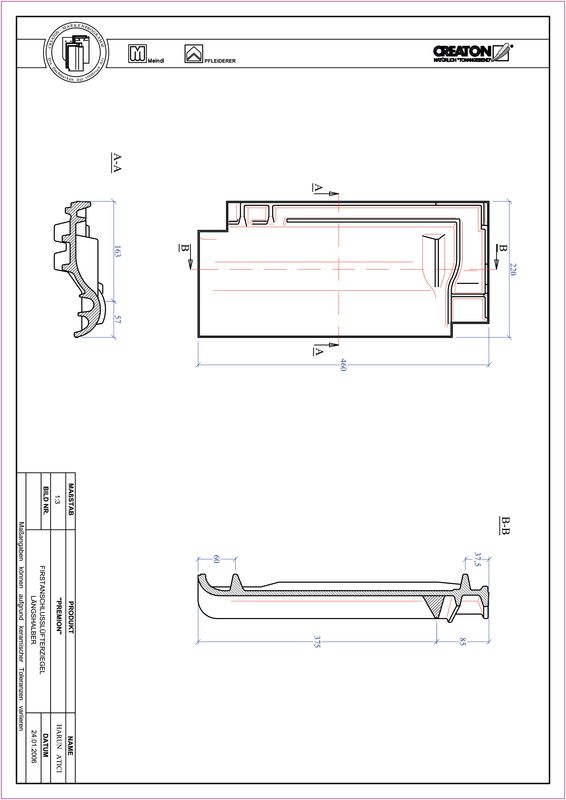

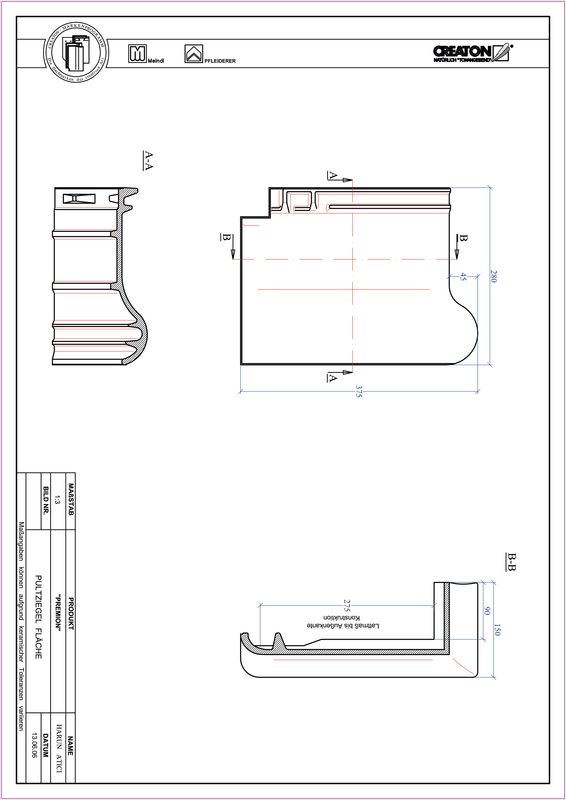

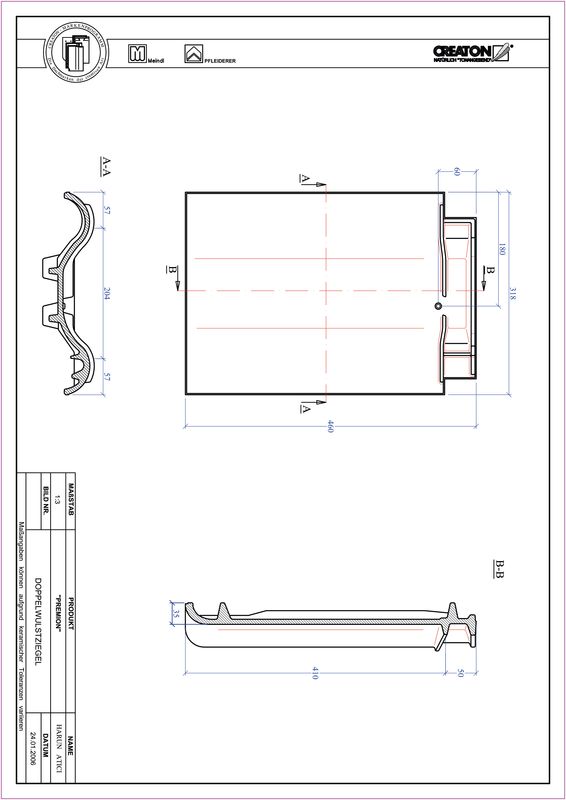

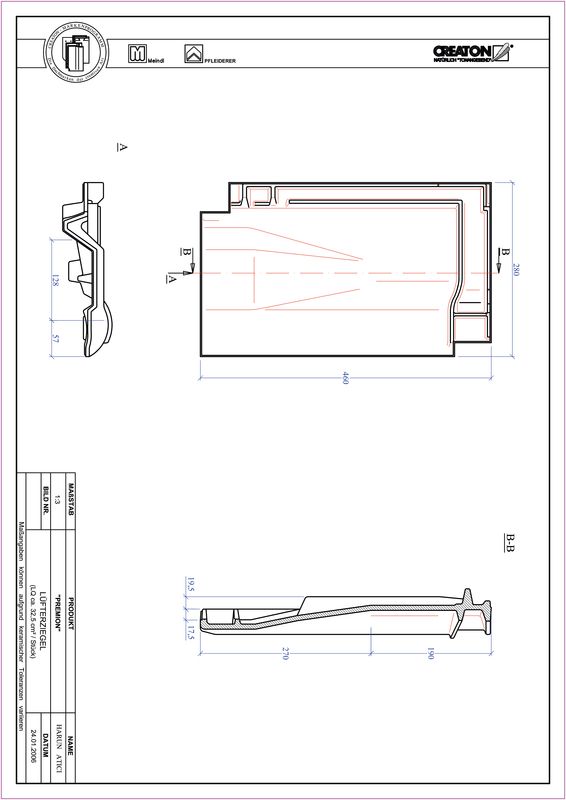

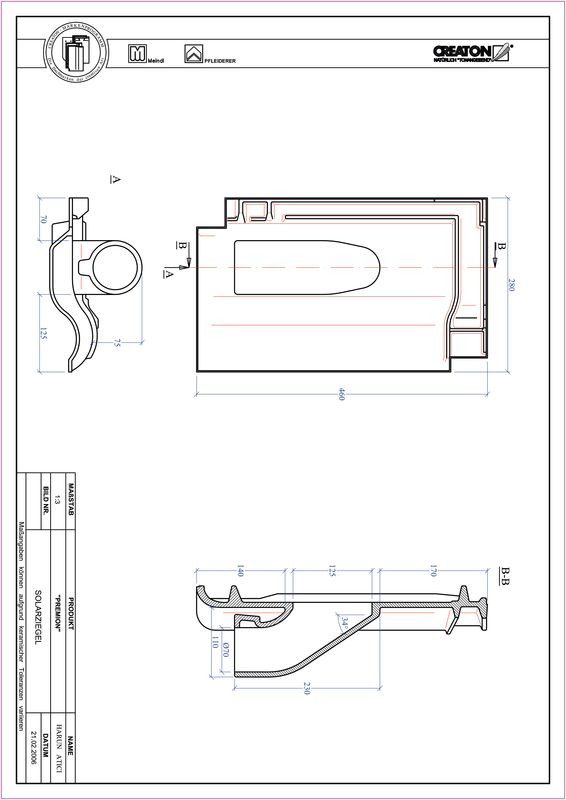

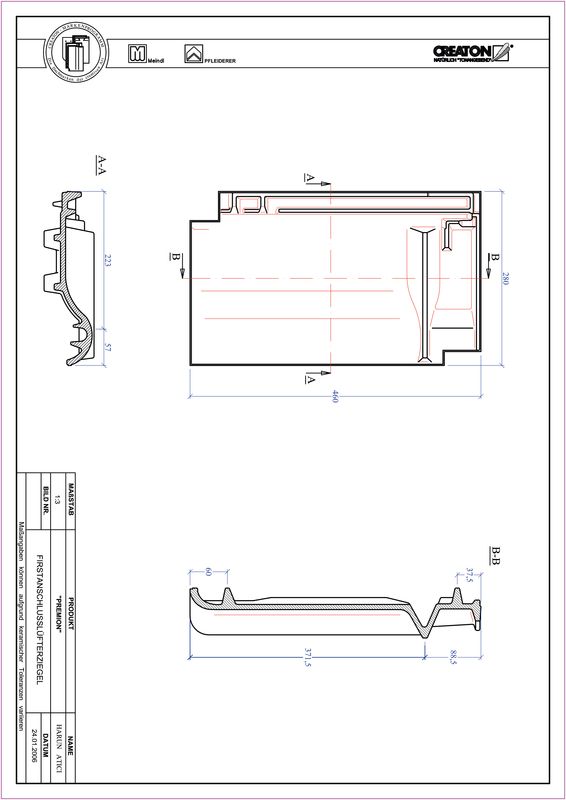

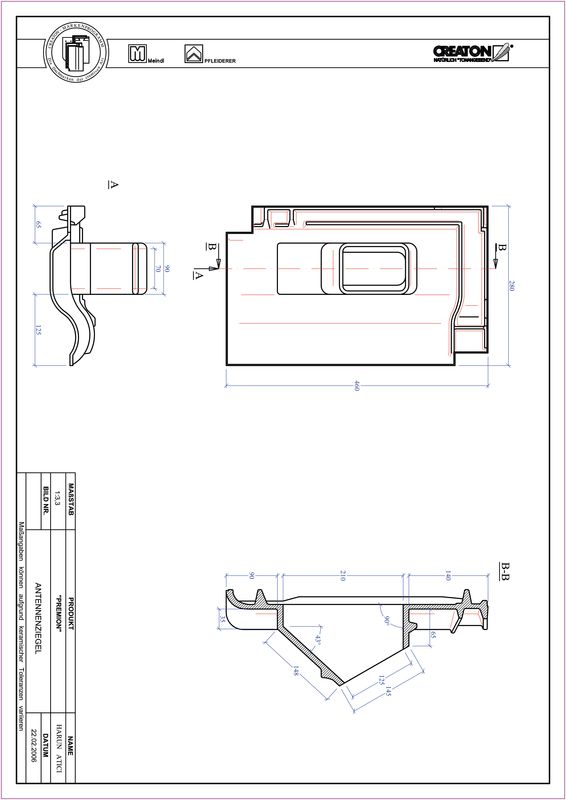

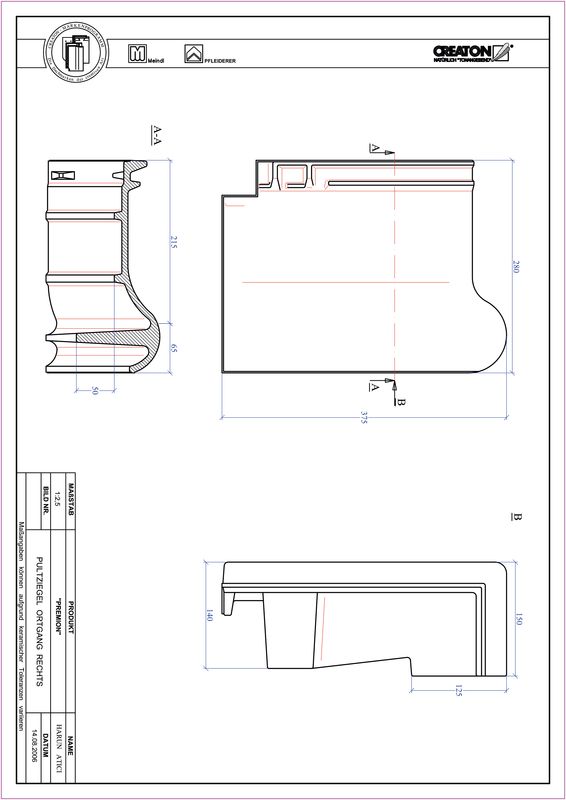

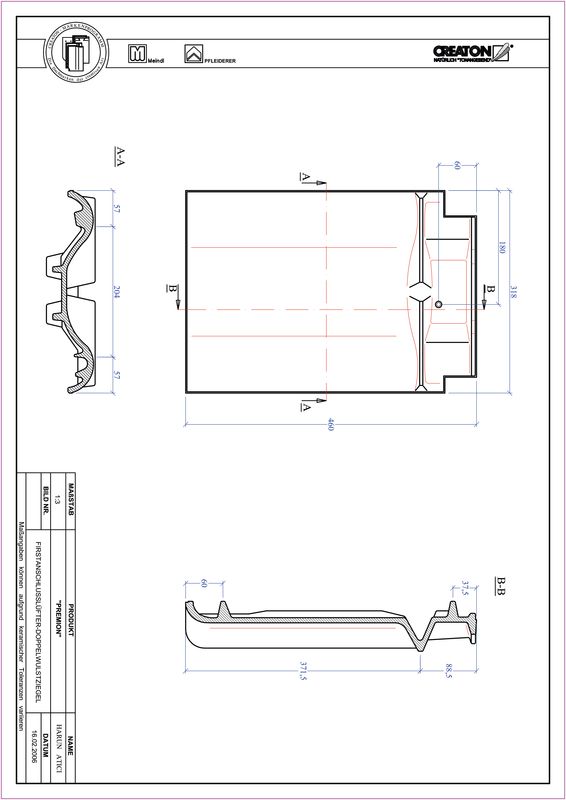

  • The technical drawing shown is merely an example.
  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • All roofs with a roof pitch of 7° - 9° require individual approval from CREATON Applications Technology. CREATON manufacturer's regulations must be complied with during installation.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 30x50-BATTENS

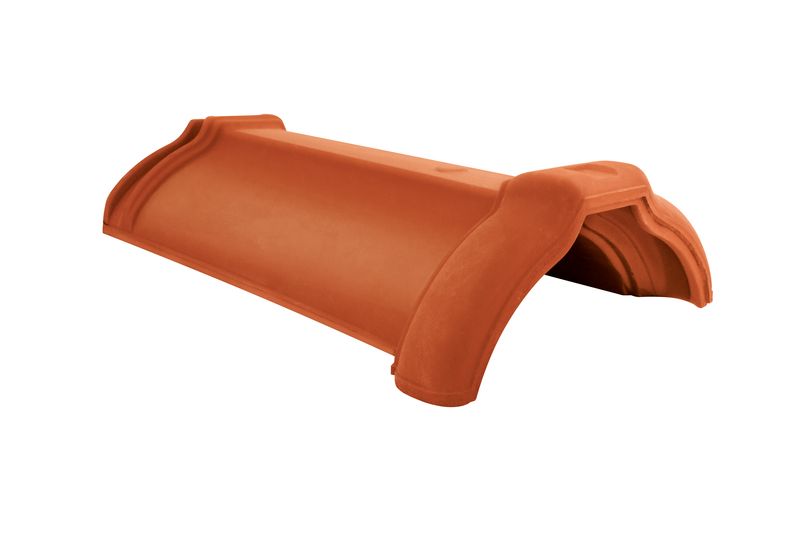

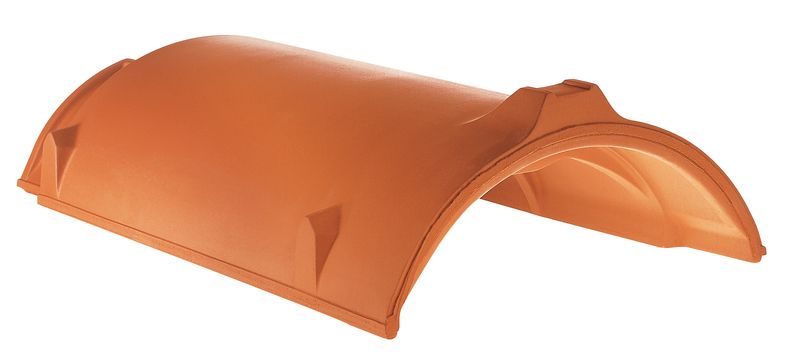

Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.5 pcs./m.FLA13012512011511011010095908585
PHP 2.5 pcs./m.LAF8585807570656055504540
PP 2.5 pcs./m.FLA100100908080757060604540
PP 2.5 pcs./m.LAF8070656055504545403530
LAF-/FLA VALUES IN MM FOR 40x60-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°60°
PHP 2.5 pcs./m.FLA14013513012512012011010510095
PHP 2.5 pcs./m.LAF85858070656055453530
PP 2.5 pcs./m.FLA1101101009090858070705550
PP 2.5 pcs./m.LAF8070655550454035252015
LAF-/FLA VALUES IN MM FOR 50x50-BATTENS
Ridge tileDN10°15°20°25°30°35°40°45°50°55°
PHP 2.5 pcs./m.FLA150145140135130135125120120115
PHP 2.5 pcs./m.LAF80807565605045352520
PP 2.5 pcs./m.FLA12012011010010010095859075
PP 2.5 pcs./m.LAF75656050453530251510
