SIMPLA

Izredna enostavnost

  • Zaščita pred vdorom dežja zaradi dvojne čelne in stranske zareze
  • Visoka ekonomska učinkovitost zaradi velikega formata
  • Prilagodljivost in poenostavljeno polaganje zaradi območja pomika v velikosti 29 mm

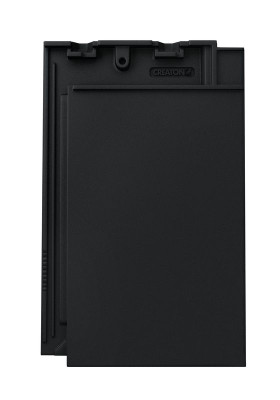

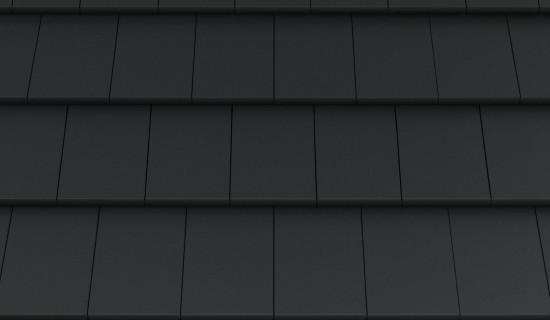

NUANCE črna mat engobirana
NUANCE črna mat engobirana
FINESSE črna glazirana
FINESSE črna glazirana

Technical data

Velikost (približno)300 x 500 mm
Približna prekrivna širina261 mm
Maksimalno prekrivanje (približno)263 mm
Minimalna približna prekrivna širina260 mm
Približna prekrivna dolžina352 mm
Maks. poraba (približno)366 mm
Min. poraba (približno)338 mm
Povprečna zahteva za strešnike (približno)10.9 kos/m²
Zidarstvo maks. približno11.4 kos/m²
Potrebni strešniki, najm. (pribl.)10.4 kos/m²
Teža po m ² (približno)52.3 kg/m²
Teža po paleti (približno)947 kg
Teža enote (približno)4.8 kg/piece
Kos na paleto192 kos
Kos po mini paketu4 piece

Area of use

VALID FOR GERMANY
Naklon strehe DUO extra (Nemčija)≥ 16 °
Naklon strehe QUATTRO longlife extra (Nemčija)≥ 10 °
Naklon strehe TRIO extra (Nemčija)≥ 14 °
Naklon strehe DUO longlife ND extra (Nemčija)≥ 14 °
VALID FOR AUSTRIA
Naklon strehe DUO longlife ND extra (Avstrija)≥ 22 °
Naklon strehe DUO extra (Avstrija)≥ 22 °
Naklon strehe QUATTRO longlife extra (Avstrija)≥ 18 °
Naklon strehe TRIO extra (Avstrija)≥ 22 °

Technical informations

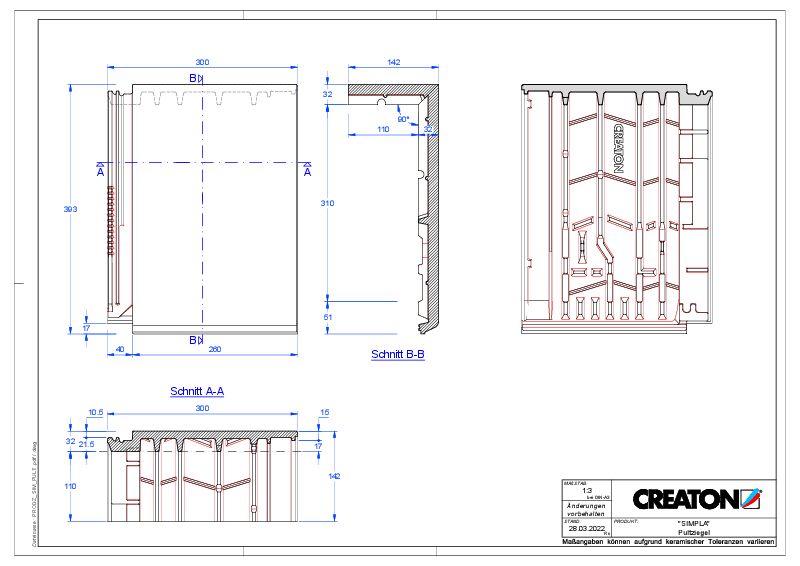

  • The technical drawing shown is merely an example.

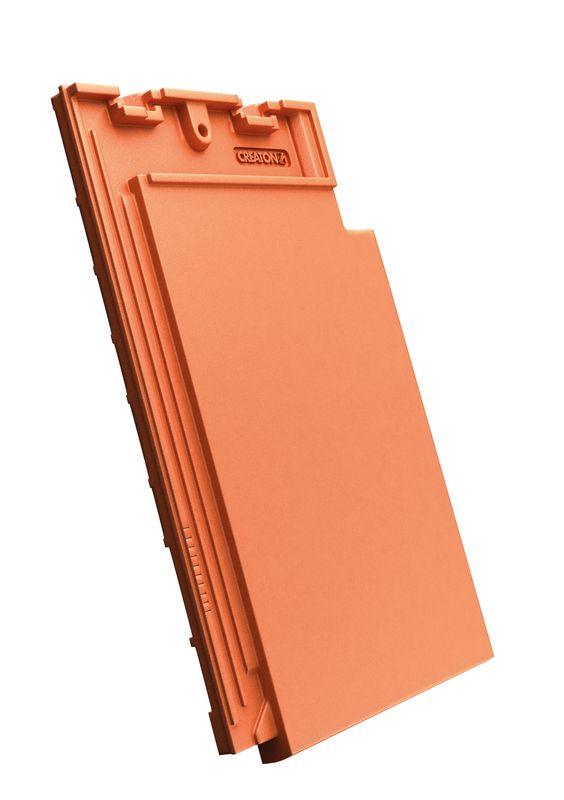

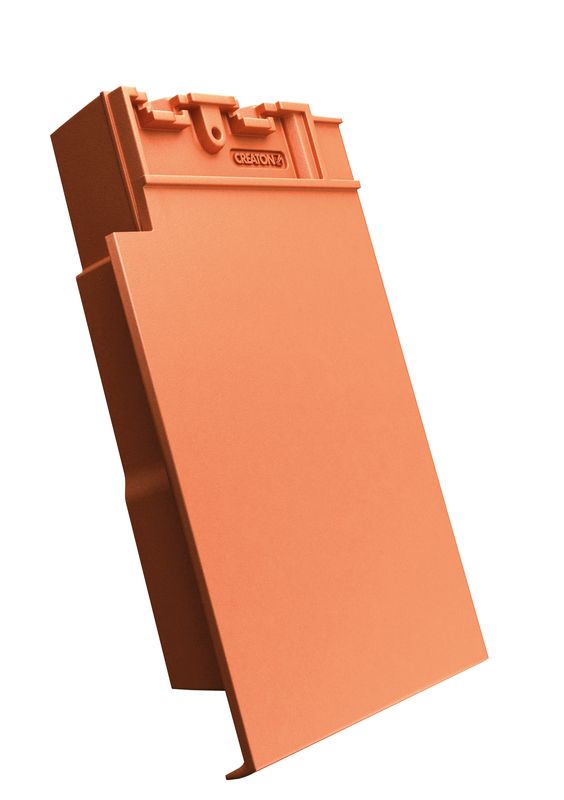

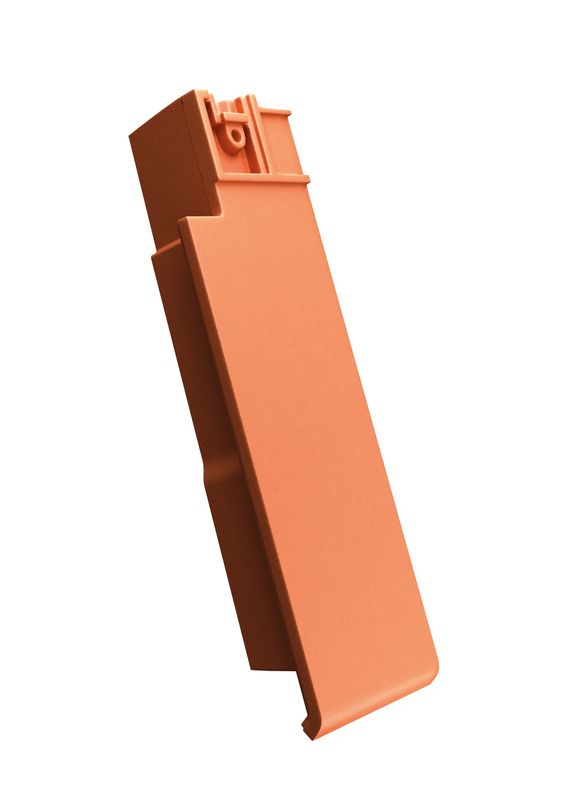

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.

LAF-/FLA-VALUES

LAF-/FLA VALUES IN MM FOR 40x60-BATTENS

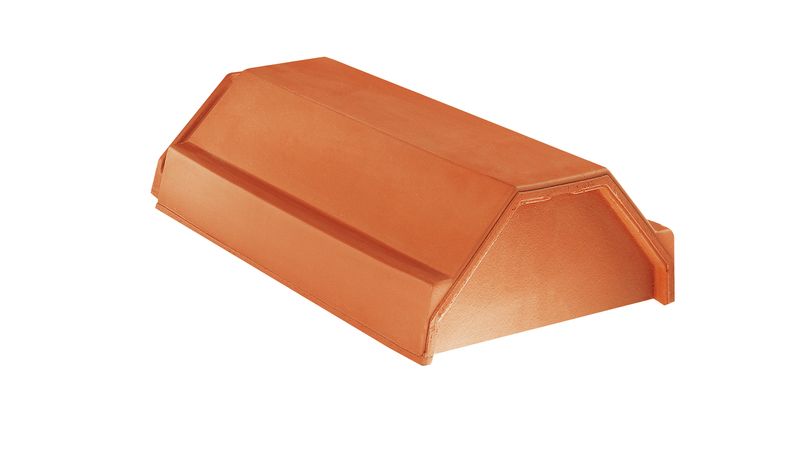

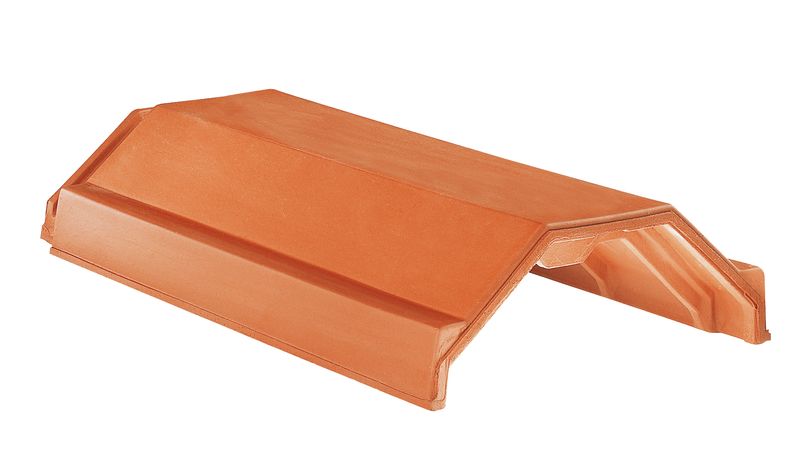

Ridge tileDN15°
PS 2.5 pcs./m.FLA75
PS 2.5 pcs./m.LAF75
