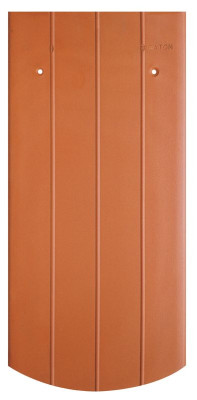

Saški bobrovec PROFIL, 18 x 38 x 1,4

Bobrovec s profilirano površino

naravno rdeča
naravno rdeča

Technical data

Velikost (približno)180 x 380 x 14 mm
Maksimalno prekrivanje (približno)180 mm
Približna prekrivna dolžina155 mm
Maks. poraba (približno)165 mm
Min. poraba (približno)145 mm
Povprečna zahteva za strešnike (približno)36 kos/m²
Teža po m ² (približno)68.4 kg/m²
Teža po paleti (približno)979 kg
Teža enote (približno)1.9 MENGENEINHEIT#KGPROST
Kos na paleto480 kos
Kos po mini paketu8 piece

Area of use

VALID FOR GERMANY
Naklon strehe DUO extra (Nemčija)≥ 22 °
Naklon strehe QUATTRO longlife extra (Nemčija)≥ 10 °
Naklon strehe TRIO extra (Nemčija)≥ 18 °
VALID FOR AUSTRIA
Naklon strehe DUO extra (Avstrija)≥ 25 °
Naklon strehe QUATTRO longlife extra (Avstrija)≥ 25 °

Technical informations

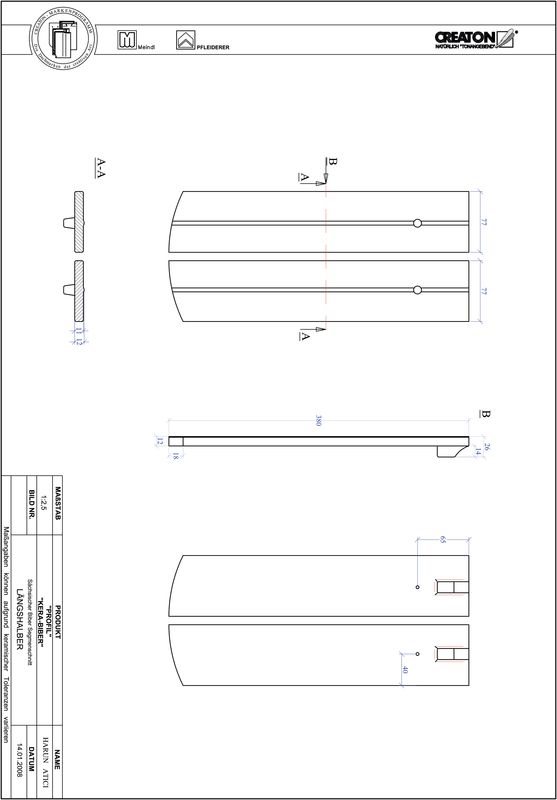

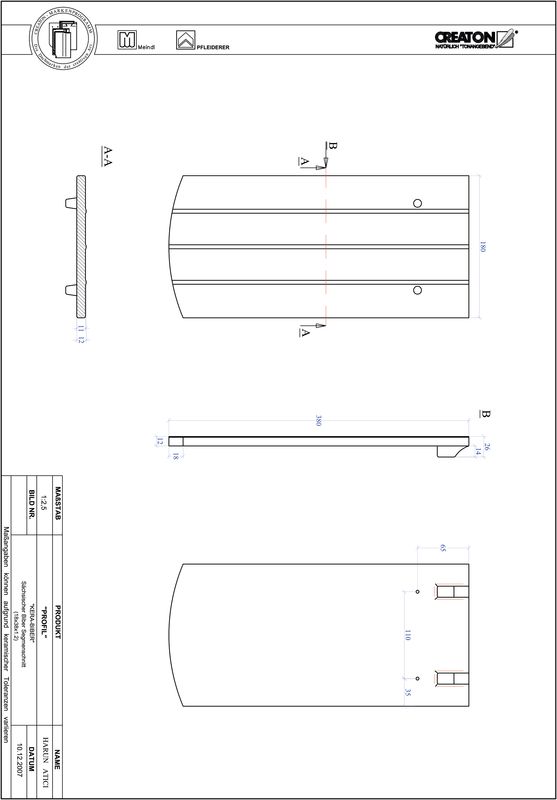

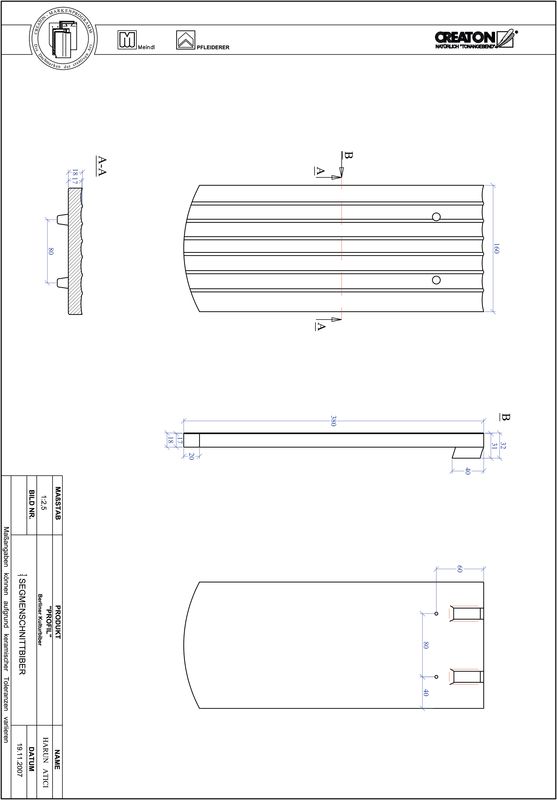

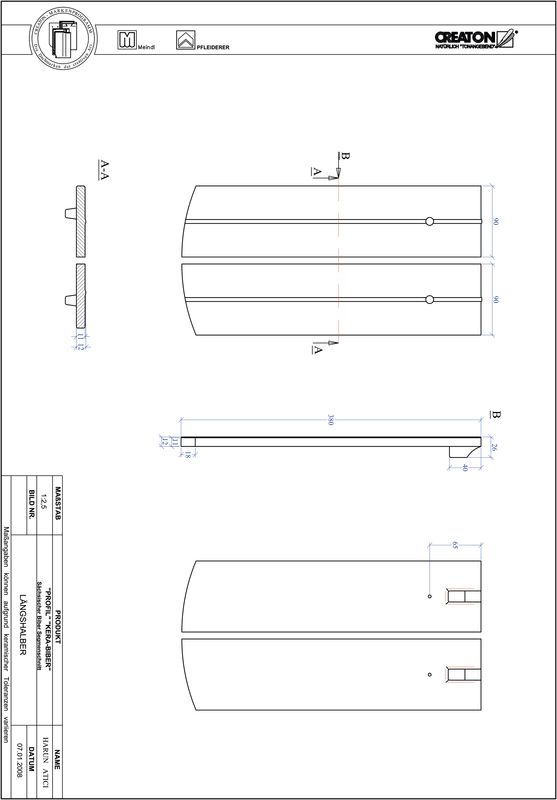

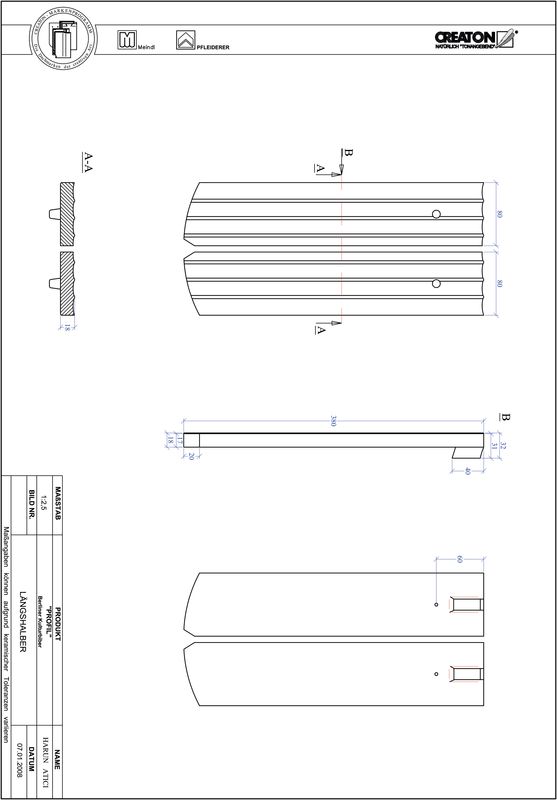

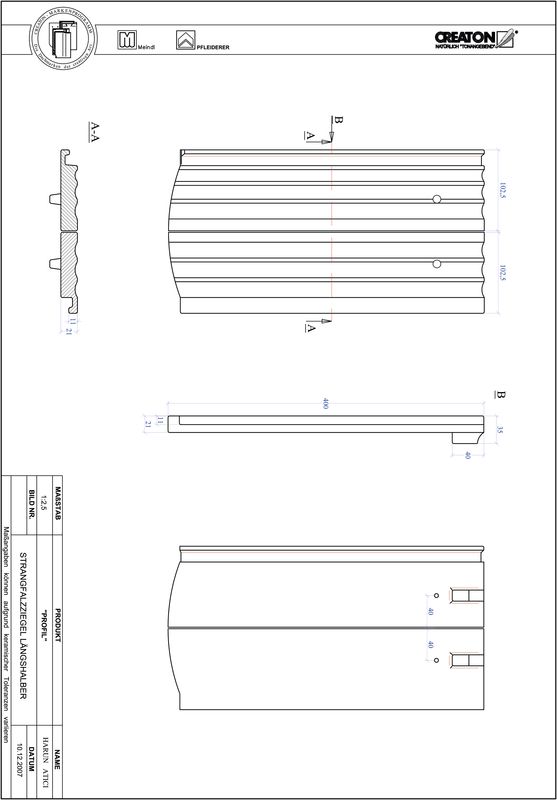

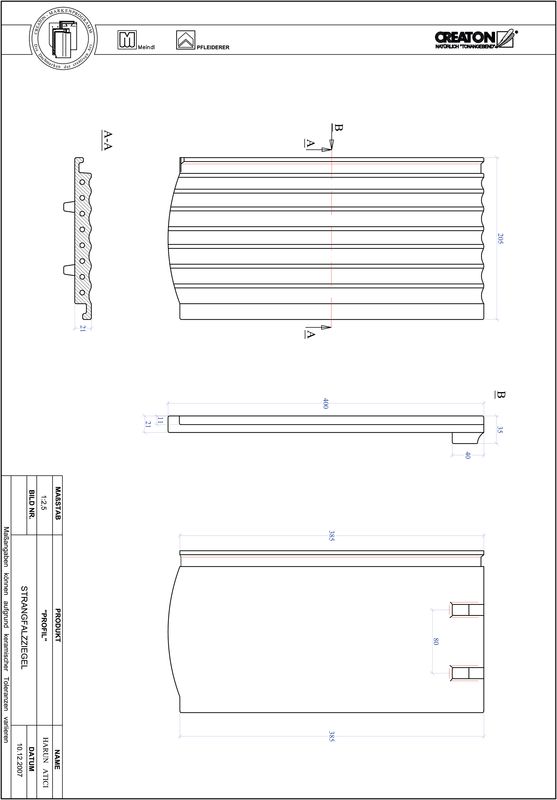

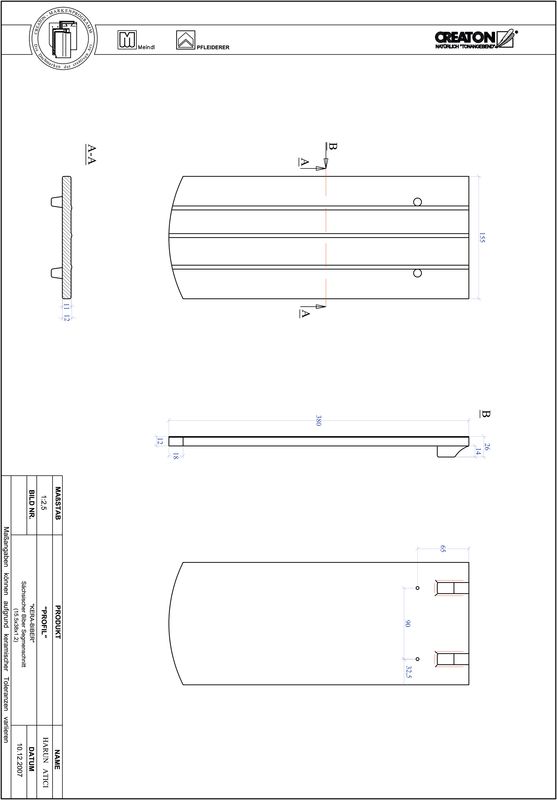

  • The technical drawing shown is merely an example.

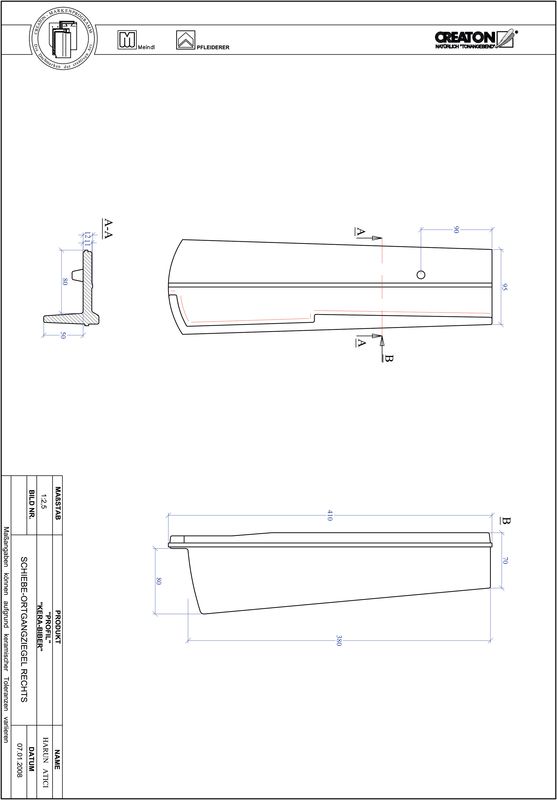

  • According to the Central Association of the German Roofing Trade (ZVDH) rules for verge tiles, the distance between the inner edge of the verge lug and the outer edge of the gable wall or cladding must be at least 1 cm.
  • Current national rules and standards apply to the execution of roofing work. These vary from country to country (e.g. ZVDH Rules, Austrian Standards) and must be taken into consideration during execution. As manufacturer's information, CREATON-specific information about the execution of the sub-roof is also applicable and is complementary to these. You can find them in our Roof Planner or at www.creaton.de / www.creaton.at.
  • Batten spacing / tile gauge is dependent on the roofing type and roof pitch.
